EBERTH Pneumatic Chisel Hammer User Manual

1. Wprowadzenie

This user manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your EBERTH Pneumatic Chisel Hammer, Model IW8-PA10. Please read this manual thoroughly before using the tool to ensure proper handling and to prevent injury or damage.

The EBERTH IW8-PA10 is a robust, air-powered chisel hammer designed for professional and DIY applications. Its high performance and impact power make it suitable for tasks such as breaking concrete, masonry, removing welds, rust, and paint. The 10-piece set includes the hammer, various chisels, and essential accessories for immediate use.

2. Zawartość opakowania

Upon opening the package, verify that all components listed below are present and undamaged. If any items are missing or damaged, contact your retailer immediately.

• 1 x EBERTH Pneumatic Chisel Hammer (Model IW8-PA10)
• 5 x Chisels (170 mm, various shapes)
• 1 x Retaining Spring
• 1 x Compressed Air Connection Nipple (1/4")
• 1 x Empty Oil Container
• 1 x Plastikowe etui transportowe
• 1 x Instrukcja obsługi

Rysunek 2.1: The EBERTH Pneumatic Chisel Hammer and its complete set of accessories neatly organized within the durable black carrying case. This image shows the hammer, five chisels, oil container, and air connection nipple, all securely fitted for transport and storage.

Rysunek 2.2: All components of the EBERTH Pneumatic Chisel Hammer set, including the hammer, five chisels, retaining spring, air connection, and empty oil container, are displayed outside their carrying case. This provides a clear view of each individual item included in the 10-piece kit.

3. Instrukcje bezpieczeństwa

Always adhere to the following safety guidelines to prevent personal injury or damage to the tool.

• Noś środki ochrony indywidualnej (PPE): Always wear safety glasses, hearing protection, and gloves when operating the pneumatic chisel hammer.
• Zabezpieczanie przedmiotu obrabianego: Upewnij się, że obrabiany przedmiot jest stabilny i bezpiecznie zamocowany.amped before beginning work.
• Utrzymuj czyste miejsce pracy: Keep your work area well-lit and free of clutter to prevent accidents.
• Właściwe zaopatrzenie w powietrze: Use a clean, dry, and regulated air supply. Do not exceed the maximum operating pressure of 6 bar.
• Odłączyć dopływ powietrza: Always disconnect the air supply before changing chisels, performing maintenance, or when the tool is not in use.
• Przed użyciem należy sprawdzić narzędzie: Check the tool and accessories for any damage or wear before each use. Do not use damaged equipment.
• Unikaj przypadkowego uruchomienia: Ensure the trigger is not depressed when connecting to the air supply.
• Trzymaj ręce wolne: Never place hands near the chisel tip during operation.
• Wentylacja: Operate in a well-ventilated area, especially when working with materials that produce dust.

4. Konfiguracja

4.1 Podłączanie do dopływu powietrza

1. Ensure your air compressor is capable of providing at least 200 l/min of air consumption at 6 bar pressure.
2. Attach the supplied 1/4" compressed air connection nipple to the air inlet of the chisel hammer.
3. Connect a suitable air hose from your compressor to the nipple. Ensure all connections are secure to prevent air leaks.

Rysunek 4.1: Szczegółowy view of the handle section of the EBERTH Pneumatic Chisel Hammer, highlighting the air inlet port where the compressed air connection nipple is attached, and an adjustment knob for controlling airflow or power.

4.2 Montaż dłut

1. Disconnect the tool from the air supply before installing or changing chisels.
2. Place the retaining spring over the barrel of the hammer.
3. Insert the desired chisel into the hammer's chuck until it clicks into place.
4. Ensure the retaining spring is properly seated to hold the chisel securely.

Rysunek 4.2: The EBERTH Pneumatic Chisel Hammer shown with one of its chisels fully inserted into the tool's chuck, secured by the retaining spring. This demonstrates the correct assembly for operation.

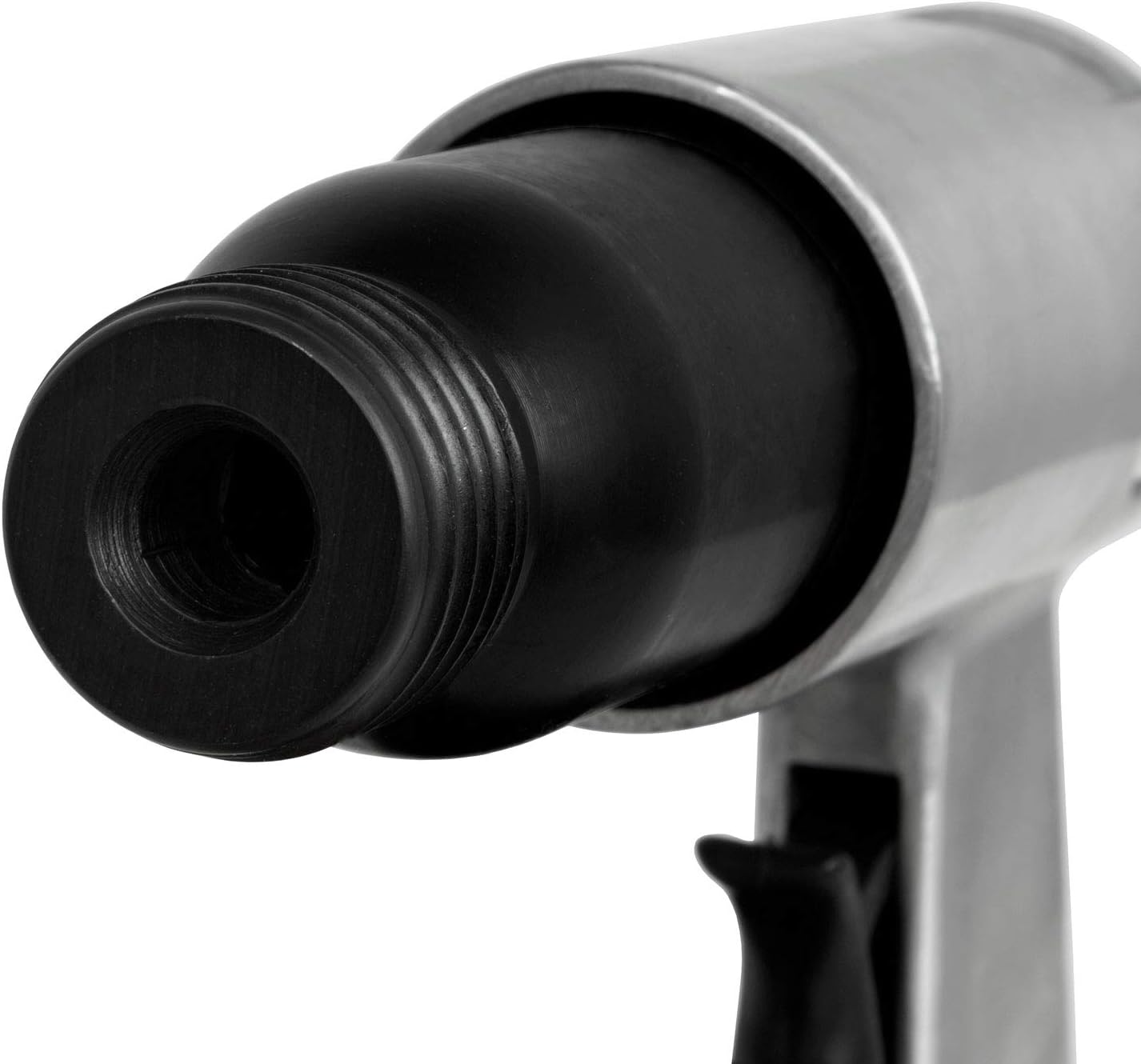

Rysunek 4.3: Zbliżenie view of the front end of the EBERTH Pneumatic Chisel Hammer, showing the opening where the chisel is inserted and the threading for the retaining spring mechanism.

Rysunek 4.4: A detailed image of the retaining spring, an essential component that secures the chisel in place during the pneumatic hammer's operation. Its coiled design allows for quick and easy chisel changes.

Rysunek 4.5: Zbliżenie view showcasing the five distinct chisel tips provided with the EBERTH Pneumatic Chisel Hammer. Each tip is designed for specific applications, offering versatility for various demolition and material removal tasks.

Rysunek 4.6: The complete set of five chisels, each approximately 170mm in length, laid out to display their full form and varying tip designs. These chisels are made from high-carbon steel for durability.

4.3 Smarowanie początkowe

Before first use, and regularly thereafter, add a few drops of pneumatic tool oil into the air inlet. This lubricates the internal components and extends the tool's lifespan. Use the provided empty oil container for convenience.

5. Działanie

5.1 Podstawowa obsługa

1. Ensure the chisel is securely installed and the air supply is connected.
2. Hold the tool firmly with both hands, maintaining a stable stance. The ergonomic design (1.5 kg weight) ensures comfortable handling.
3. Position the chisel tip against the material to be worked on.
4. Press the trigger to activate the hammer. The tool will deliver up to 4500 strokes per minute.
5. Apply steady, controlled pressure. Do not force the tool.
6. Zwolnij spust, aby zatrzymać operację.

Rysunek 5.1: Szczegółowy view of the EBERTH Pneumatic Chisel Hammer, showcasing its robust aluminum construction and ergonomic grip. This image highlights the main body and trigger mechanism, ready for operation.

5.2 Zalecane zastosowania

The EBERTH Pneumatic Chisel Hammer is versatile and can be used for:

• Light demolition work on concrete and masonry.
• Chipping and scaling applications.
• Removing rust, paint, and weld spatter.
• Automotive repair tasks.
• General workshop and DIY projects.

6. Konserwacja

Regular maintenance ensures the longevity and optimal performance of your pneumatic chisel hammer.

6.1 Smarowanie

Add 5-10 drops of pneumatic tool oil into the air inlet before each use or after every hour of continuous operation. This is crucial for lubricating the internal motor and preventing wear.

6.2 Czyszczenie

• After each use, clean the tool's exterior with a dry cloth.
• Okresowo sprawdzaj i czyść filtr powietrza w sprężarce, aby zapewnić dopływ czystego powietrza do narzędzia.
• Remove and clean chisels after use, applying a light coat of oil to prevent rust.

6.3 Przechowywanie

Store the pneumatic chisel hammer and its accessories in the provided plastic carrying case in a dry, clean environment, away from direct sunlight and extreme temperatures.

7. Rozwiązywanie Problemów

Aby zapoznać się z najczęstszymi problemami i ich rozwiązaniami, zapoznaj się z poniższą tabelą.

8. Specyfikacje

9. Gwarancja i wsparcie

EBERTH products are manufactured to high-quality standards. For information regarding warranty coverage, repair services, or technical support, please refer to the warranty card included with your product or visit the official EBERTH webZachowaj paragon jako dowód zakupu na wypadek ewentualnych roszczeń gwarancyjnych.

For further assistance, you may also contact your retailer or the EBERTH customer service department.
