Aldes BAZ Pilot 11018204 Ventilation Unit Instruction Manual

1. Wprowadzenie

This manual provides essential information for the installation, operation, and maintenance of your Aldes BAZ Pilot 45/135m3/h D125 unit, model 11018204. Please read these instructions carefully before proceeding with installation or use to ensure safe and efficient operation. This unit is specifically designed for the renovation of homes equipped with Gas VMC (Ventilation Mécanique Contrôlée) systems, where the boiler is connected to the VMC. When connected to the VMC network and a compatible low-temperature boiler, such as the Frisquet Evolution, the BAZ Pilot vent ensures proper ventilation flow rates.

2. Informacje dotyczące bezpieczeństwa

Always adhere to the following safety guidelines to prevent injury or damage to the unit and property:

• Odłącz zasilanie: Always ensure the main power supply to the VMC system is disconnected before performing any installation, maintenance, or inspection tasks.
• Profesjonalna instalacja: Installation and connection of this unit must be performed by a qualified and certified professional in accordance with local building codes and regulations.
• Wentylacja: Ensure adequate ventilation in the work area during installation.
• Przeszkoda: Do not obstruct the air inlets or outlets of the unit or the VMC system. Proper airflow is crucial for safe operation.
• Dzieci: Keep the unit and its components out of reach of children.
• Zgodność: Ensure the unit is compatible with your existing VMC network and boiler system as specified.

3. Koniec produktuview

The Aldes BAZ Pilot 45/135m3/h D125 (model 11018204) is a specialized ventilation component designed for integration into Gas VMC systems, particularly in renovation projects where a gas boiler is connected to the VMC. Its primary function is to regulate and ensure optimal ventilation flow rates, contributing to the safe and efficient operation of your gas appliance and overall indoor air quality. The 'D125' designation refers to the nominal diameter of the duct connection.

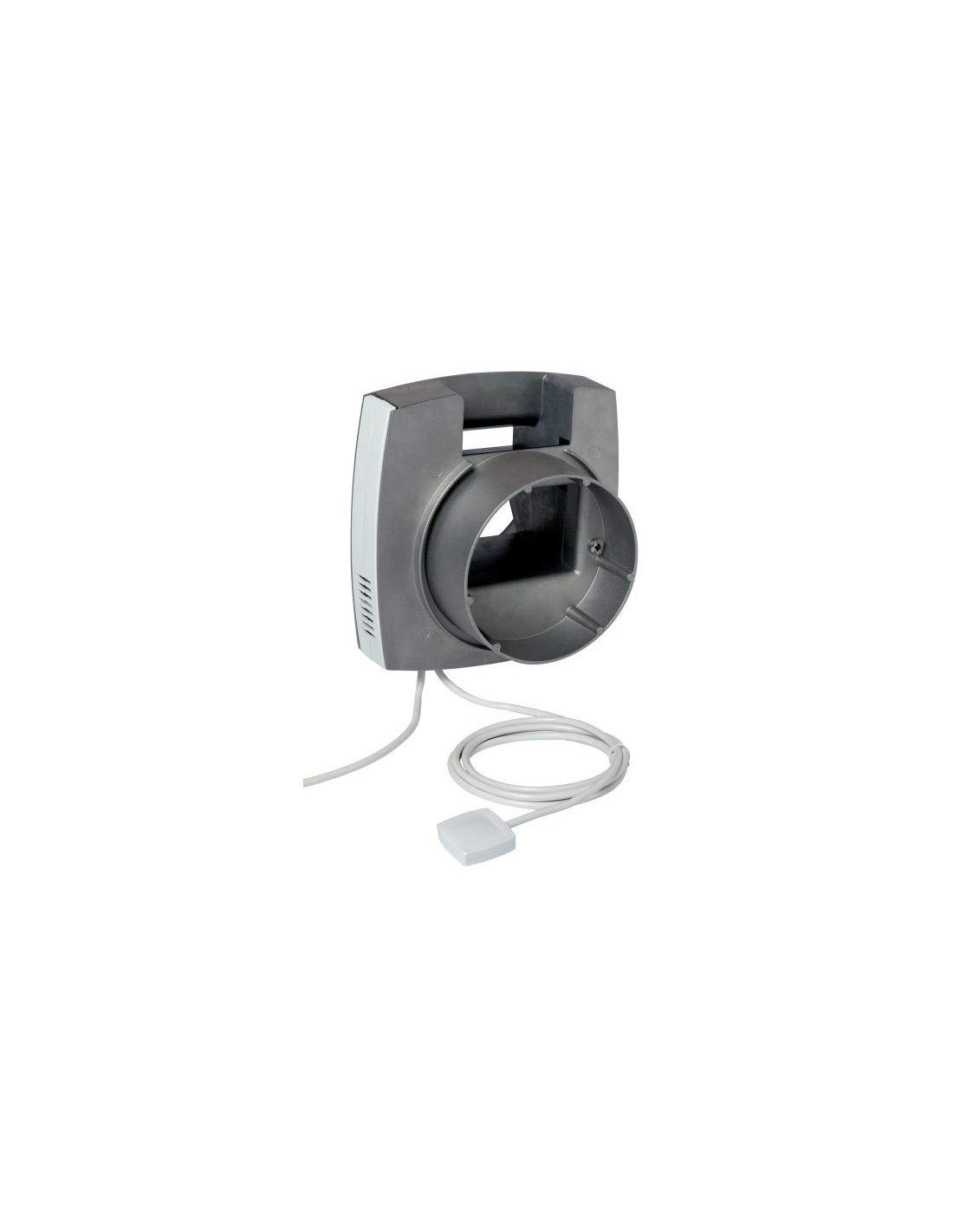

Image showing the Aldes BAZ Pilot unit, a component for gas VMC systems, designed to manage ventilation flow.

4. Konfiguracja i instalacja

Installation should only be carried out by a qualified professional.

1. Rozpakowanie i kontrola: Carefully unpack the Aldes BAZ Pilot unit. Inspect all components for any signs of damage during transit. Do not install if damage is observed.
2. Location Identification: Identify the appropriate installation location within your existing VMC network, typically near the connection point of the gas boiler.
3. Podłączenie kanału: Connect the BAZ Pilot unit to the VMC ducting. Ensure that the D125 diameter connections are secure and airtight to prevent air leaks. Use appropriate clamps and sealing materials.
4. Boiler System Integration: Integrate the unit with the gas boiler system as per the specific instructions provided by the boiler manufacturer and Aldes. This typically involves connecting specific control or sensing lines.
5. Electrical Connections (if applicable): If the unit requires electrical power, ensure all connections are made by a qualified electrician, following wiring diagrams and local electrical codes.
6. Test systemu: After installation, perform a comprehensive system test to verify proper operation of the VMC and the BAZ Pilot unit in conjunction with the gas boiler.

5. Instrukcja obsługi

The Aldes BAZ Pilot 45/135m3/h D125 operates automatically as an integral part of your VMC Gas system. Once correctly installed and integrated with your VMC network and compatible boiler, it continuously regulates airflow to maintain optimal ventilation and ensure the safe operation of your gas appliance. No manual adjustments are typically required for its core function. The unit is designed to respond to the operational status of the connected gas boiler to manage ventilation flow rates accordingly.

6. Konserwacja

Regular maintenance ensures the longevity and efficient operation of your BAZ Pilot unit and the overall VMC system.

• Przeglądy okresowe: Regularly inspect the unit and associated ducting for any signs of blockages, damage, or loose connections.
• Czyszczenie: Clean air inlets and outlets to prevent dust and debris accumulation, which can impede airflow. Use a soft, dry cloth. Do not use abrasive cleaners or solvents.
• VMC System Maintenance: Ensure that the entire VMC system, including filters and main fan unit, is maintained according to its specific manufacturer's instructions. The BAZ Pilot's performance is dependent on the proper functioning of the overall VMC system.
• Kontrola profesjonalna: It is recommended to have the entire VMC Gas system, including the BAZ Pilot, inspected by a qualified professional at least once a year.

7. Rozwiązywanie Problemów

If you experience issues with your Aldes BAZ Pilot unit, consider the following common troubleshooting steps:

• Zmniejszony przepływ powietrza:
  • Check for any visible blockages in the ducts or vents connected to the BAZ Pilot.
  • Ensure the main VMC system is operating correctly and its filters are clean.
• Nietypowe dźwięki:
  • Inspect for any loose connections in the ducting around the unit.
  • Check for foreign objects that may have entered the ductwork.
• System Not Functioning:
  • Verify that the main power supply to the VMC system is active.
  • Ensure all connections to the boiler and VMC network are secure.
  • If issues persist, contact a qualified technician for diagnosis and repair.

8. Specyfikacje

9. Gwarancja i wsparcie

Specific warranty information for the Aldes BAZ Pilot 11018204 is typically provided at the point of purchase or within the product packaging. For detailed warranty terms, technical support, or spare parts inquiries, please contact your Aldes distributor or a certified service professional. Information regarding spare parts availability for this specific model is currently unavailable. Please retain your proof of purchase for warranty claims.
