Legrand 050329 Coupler with Extractor Black Instruction Manual

Wstęp

This manual provides essential instructions for the safe and effective installation, operation, and maintenance of the Legrand 050329 Coupler with Extractor Black. Please read this manual thoroughly before using the product and retain it for future reference.

Informacje dotyczące bezpieczeństwa

WARNING: Electrical work should only be performed by qualified personnel. Disconnect power before installation or maintenance.

• Należy upewnić się, że przestrzegane są wszystkie lokalne i krajowe przepisy dotyczące instalacji elektrycznych.
• Nie używaj produktu, jeśli wygląda na uszkodzony.
• The product is designed for specific applications; do not modify it for unintended uses.
• The IP20 rating indicates protection against solid objects larger than 12.5mm, but no protection against water. Avoid exposure to liquids.

Produkt ponadview

The Legrand 050329 is a black coupler designed for industrial electrical applications. It features screw terminals for secure connection and an integrated extractor mechanism.

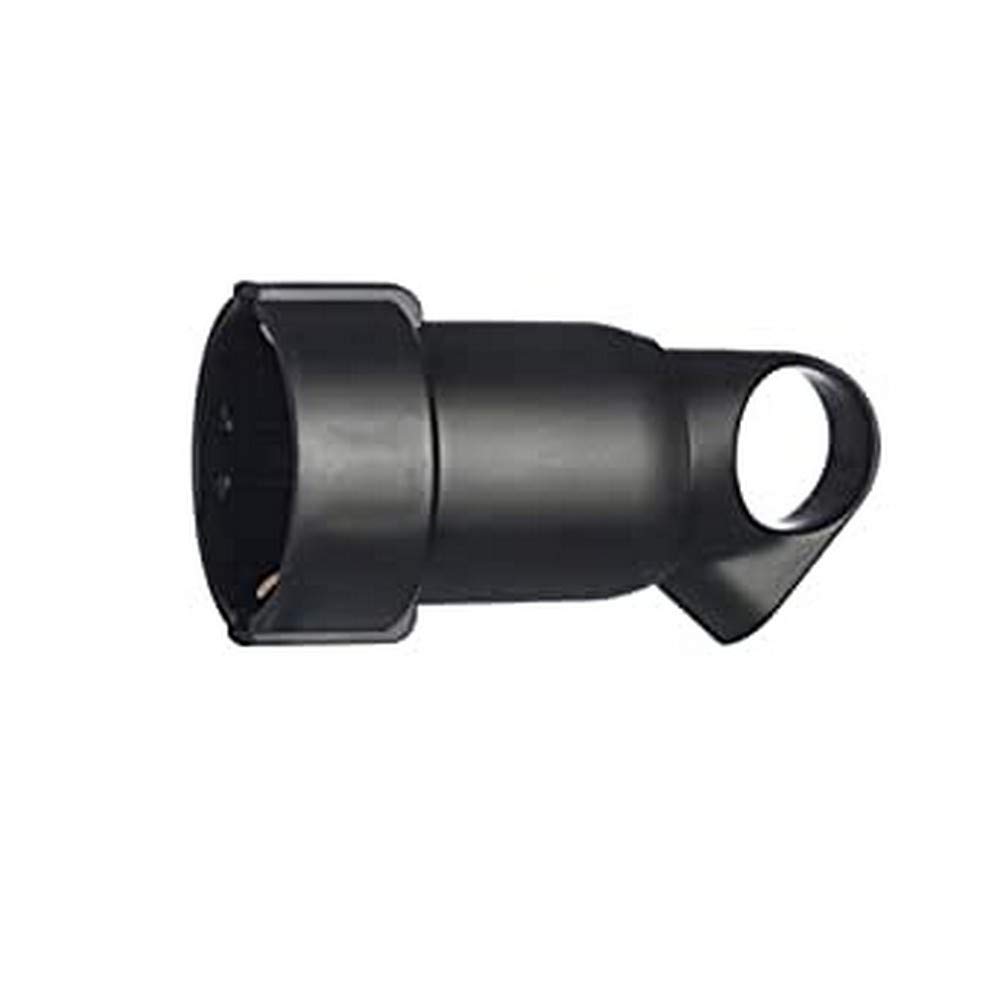

Obraz 1: Przód view of the Legrand 050329 Coupler with Extractor Black, showing its compact design and screw terminal access points.

Konfiguracja i instalacja

1. Odłączenie zasilania: Before beginning installation, ensure that the power supply to the circuit is completely disconnected and locked out.
2. Montowanie: Secure the coupler in the desired location using appropriate fasteners (not included). Ensure a stable and vibration-free mounting surface.
3. Okablowanie:
   • Open the screw terminals on the coupler.
   • Insert the stripped ends of the electrical wires into the appropriate terminals.
   • Tighten the screws firmly to ensure a secure electrical connection. Do not overtighten.
   • Verify that no bare wire strands are exposed outside the terminals.
4. Weryfikacja połączenia: Po wykonaniu okablowania należy dokładnie sprawdzić wszystkie połączenia pod kątem ich dokręcenia i prawidłowej polaryzacji.
5. Przywrócenie zasilania: Po zakończeniu instalacji i jej sprawdzeniu należy przywrócić zasilanie obwodu.

Instrukcja obsługi

The Legrand 050329 functions as a coupler for electrical connections. The integrated extractor is designed to facilitate the safe and easy disconnection of the coupled components. To operate the extractor:

1. Ensure the circuit is de-energized if disconnecting under load is not permitted or safe.
2. Locate the extractor mechanism on the coupler.
3. Apply gentle, firm pressure or pull on the extractor as designed to release the connection. Refer to the product's physical design for the specific extraction method.

Konserwacja

Regular maintenance ensures the longevity and reliable operation of your Legrand 050329 coupler.

• Kontrola: Periodically inspect the coupler for any signs of physical damage, wear, or loose connections.
• Czyszczenie: Clean the exterior of the coupler with a dry, soft cloth. Do not use abrasive cleaners or solvents. Ensure no dust or debris accumulates in the terminals.
• Kontrola połączenia: Re-tighten screw terminals if any looseness is detected during inspection.

Rozwiązywanie problemów

If you encounter issues with your Legrand 050329 coupler, consider the following:

• Brak połączenia:
  • Sprawdź czy zasilanie jest aktywne.
  • Verify all wire connections are secure and correctly terminated in the screw terminals.
  • Ensure the coupled components are fully engaged.
• Difficulty with Extractor:
  • Ensure the mechanism is not obstructed by debris.
  • Apply even pressure as intended by the design. Do not force the mechanism.

If problems persist, contact a qualified electrician or Legrand customer support.

Specyfikacje

Informacje o gwarancji

Legrand products are manufactured to high-quality standards. For specific warranty terms and conditions applicable to the Legrand 050329 coupler, please refer to the warranty documentation provided at the time of purchase or contact your local Legrand distributor or customer service. Warranty periods and coverage may vary by region and product type.

Obsługa klienta

For technical assistance, product inquiries, or support, please visit the official Legrand website or contact their customer service department. Contact information can typically be found on the Legrand webwitryny lub opakowania produktu.

Legrand Official Webstrona: www.legrand.com
