Heath Zenith HZ-4300-BK-B 360-Degree Motion-Activated Octagonal Ceiling Light User Manual

Produkt ponadview

The Heath Zenith HZ-4300-BK-B is a 360-degree motion-activated octagonal ceiling light designed for outdoor use. It features a black finish and frosted glass panels, providing both functionality and a decorative appearance. This light is equipped with a motion sensor that detects movement up to 30 feet, enhancing security and convenience. It requires four candelabra base incandescent bulbs, each with a maximum of 25 watts (bulbs not included).

Rycina 1: Przód view of the Heath Zenith HZ-4300-BK-B Ceiling Motion Light, showcasing jego octagonal design and frosted glass panels.

Główne cechy

• Detekcja ruchu: Offers up to 30 feet of motion detection range.
• DualBrite Two-Level Lighting: Provides adjustable lighting levels for enhanced security and ambiance.
• Trwała konstrukcja: Features a black finish and frosted glass for outdoor durability and aesthetic appeal.
• Kompatybilność żarówek: Requires four candelabra base incandescent bulbs (25 watts max each), not included.
• Zasięg 360 stopni: The motion sensor provides comprehensive detection around the fixture.

Instalacja i konfiguracja

Installation of the Heath Zenith HZ-4300-BK-B ceiling light should be performed by a qualified electrician or a knowledgeable individual following all local electrical codes. Ensure power is turned off at the circuit breaker before beginning any installation work.

Wymagane komponenty (nie dołączone):

• Four (4) candelabra base incandescent bulbs (25 watts maximum per bulb).

Ogólne kroki instalacji:

1. Bezpieczeństwo przede wszystkim: Disconnect power at the main fuse or circuit breaker box.
2. Montowanie: Securely attach the light fixture to the ceiling junction box according to the provided mounting hardware and instructions.
3. Okablowanie: Connect the electrical wires (live, neutral, ground) from the fixture to the corresponding wires in the junction box. Ensure all connections are secure and insulated.
4. Montaż żarówki: Carefully screw in four candelabra base incandescent bulbs (max 25W each) into the sockets.
5. Montaż osprzętu: Attach the frosted glass panels and any decorative elements as per the manufacturer's instructions. Note that the glass panes are not designed to be easily removable for routine bulb changes; access is typically from the main housing.
6. Włączanie: Przywróć zasilanie za pomocą wyłącznika obwodu.

Figure 2: The Heath Zenith HZ-4300-BK-B light fixture illuminated, demonstrating its light output.

Instrukcja obsługi

The HZ-4300-BK-B features a motion-activated sensor and DualBrite technology for customizable lighting. Refer to the detailed user manual (link in Support section) for specific settings and adjustments.

Działanie czujnika ruchu:

• The 360-degree motion sensor detects movement within a 30-foot radius.
• Upon detection, the light will activate to full brightness.
• The duration the light stays on after motion ceases is typically adjustable (e.g., 1, 5, or 10 minutes), as per the DualBrite settings.

DualBrite Feature:

DualBrite allows the light to come on at a low-level accent light at dusk and then brighten to full intensity when motion is detected. After a set period of no motion, it will return to the low-level setting or turn off completely, depending on your configuration.

• Oświetlenie akcentujące: Can be set to stay on for 3 hours, 6 hours, or from dusk-to-dawn at a reduced brightness.
• Pełna jasność: Activates when motion is detected, staying on for a user-defined period before returning to accent mode or off.

Konserwacja

Regular maintenance ensures optimal performance and longevity of your Heath Zenith ceiling light.

• Czyszczenie: Periodically wipe the exterior of the fixture with a soft, damp ściereczką. Unikaj środków czyszczących o działaniu ściernym i rozpuszczalników, które mogłyby uszkodzić wykończenie lub szkło.
• Wymiana żarówki: When replacing bulbs, ensure power is off. Use only candelabra base incandescent bulbs, 25 watts maximum.
• Kontrola: Annually inspect wiring and connections for any signs of wear or damage. If damage is found, consult a qualified electrician.

Rozwiązywanie problemów

If you experience issues with your Heath Zenith motion light, refer to the following common troubleshooting tips. For more complex problems, consult the full user manual or contact customer support.

Specyfikacja produktu

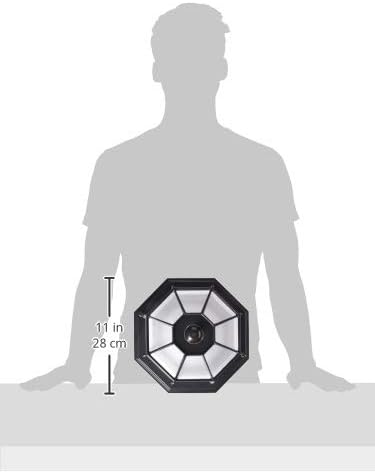

Figure 3: Dimensions of the Heath Zenith HZ-4300-BK-B light fixture.

Informacje o gwarancji

The Heath Zenith HZ-4300-BK-B Ceiling Motion Light comes with a warranty that specifically covers the glass components. For detailed warranty terms, conditions, and claim procedures, please refer to the official user manual or contact Heath Zenith customer support.

Wsparcie i kontakt

For further assistance, detailed installation guides, or troubleshooting, please refer to the official user manual or contact Heath Zenith customer support.

• Oficjalna instrukcja obsługi (PDF): Pobierz PDF
• Producent Webstrona: Visit the Heath Zenith official webwitryna umożliwiająca rejestrację produktu, zapoznanie się z często zadawanymi pytaniami i informacjami kontaktowymi.
