1. Wprowadzenie

The Eisco Labs Coils & Core Activity Set is designed for educational exploration of electromagnetism, specifically focusing on transformers and induced magnetism. This kit provides components to demonstrate fundamental principles such as Lenz's Law, Faraday's Law, the effect of iron cores on magnetic field strength, and electromagnetic induction. It is suitable for students and educators to conduct various experiments related to electrical energy and transformer operation.

2. Informacje dotyczące bezpieczeństwa

• Always supervise children when using this kit.
• Ensure all electrical connections are secure before applying power.
• Do not exceed recommended voltage or current ratings for the coils. Refer to experiment guidelines for specific power requirements.
• Avoid touching exposed wires or terminals when power is applied.
• Keep the kit away from water or other liquids.
• Store components properly after use to prevent damage.

3. Składniki produktu

The Eisco Labs Coils & Core Activity Set includes the following items:

• 1 x Plastic Base
• 1 x Laminated Iron Core with Mounting Fixtures
• 6 x Coils (protected in heat-resistant film)

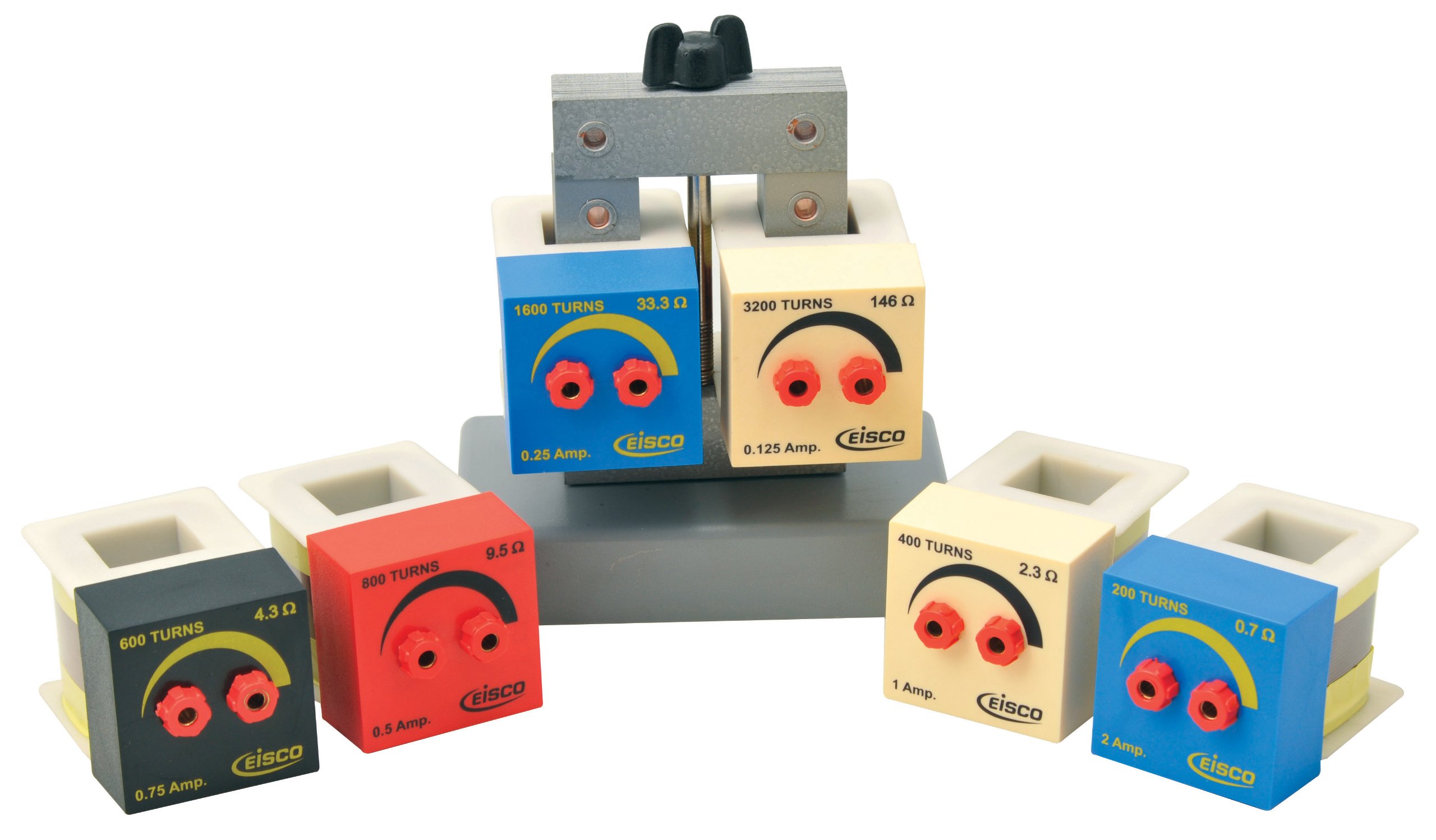

Figure 1: An image showing the various components of the Eisco Labs Coils & Core Activity Set, including the plastic base, laminated iron core, and multiple coils.

4. Instrukcje konfiguracji

Follow these steps to set up your Coils & Core Activity Set:

1. Rozpakuj komponenty: Ostrożnie wyjmij wszystkie elementy z opakowania. Sprawdź, czy nie mają uszkodzeń.
2. Place Plastic Base: Position the plastic base on a stable, flat surface.
3. Assemble Iron Core: The laminated iron core typically consists of two U-shaped halves. Slide these halves together to form a closed rectangular loop, ensuring they fit snugly into the mounting fixtures on the plastic base. The mounting fixtures are designed to hold the core securely.
4. Attach Coils: Select the desired coils for your experiment. Each coil is designed to slide onto the arms of the laminated iron core. Ensure the coils are seated firmly. The kit includes various coils, allowing for different turn ratios in transformer experiments.
5. Prepare Power Source (Not Included): This kit requires an external power source (e.g., a low-voltage AC/DC power supply) for operation. Ensure the power source is appropriate for the experiments you plan to conduct.

5. Operating Instructions and Experiments

This section outlines general operating principles and provides examples of experiments that can be performed with the Eisco Labs Coils & Core Activity Set. Detailed experiment instructions and activity sheets are typically included with the product for comprehensive learning.

5.1. Basic Electromagnetic Induction

1. Place one coil on the iron core.
2. Connect the coil to a sensitive galvanometer or a multimeter set to measure small currents.
3. Bring a strong bar magnet near the coil, moving it in and out. Observe the deflection on the galvanometer, demonstrating Faraday's Law of Induction.
4. Vary the speed of the magnet's movement and observe the change in induced current.

5.2. Transformer Operation

To demonstrate transformer principles, you will need two coils with different numbers of turns (e.g., a primary coil and a secondary coil), an AC power source, and a voltmeter.

1. Place two coils on opposite arms of the laminated iron core. One will serve as the primary coil, and the other as the secondary coil.
2. Connect the primary coil to a low-voltage Źródło zasilania prądem zmiennym.
3. Connect the secondary coil to an AC voltmeter.
4. Apply power to the primary coil. Observe the voltage reading on the secondary coil.
5. Experiment with different coil combinations (e.g., more turns on secondary for step-up, fewer turns for step-down) to observe the relationship between the number of turns and the induced voltage.
6. Notatka: The impedance of high-count coils can lead to significant voltage drop, which is a practical consideration in real-world transformer design.

5.3. Lenz's Law

Lenz's Law can be demonstrated by observing the direction of induced current and its opposition to the change in magnetic flux. This typically requires a galvanometer and careful observation of its deflection direction when a magnet is moved into and out of a coil.

6. Konserwacja

• Czyszczenie: Wipe components with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Składowanie: Store the kit in a dry, cool place, away from direct sunlight and moisture. Keep components organized to prevent loss or damage.
• Kontrola: Periodically inspect coils for any damage to the heat-resistant film or wire. Ensure the iron core is free from rust or corrosion.

7. Rozwiązywanie Problemów

8. Specyfikacje

• Marka: Eisco
• Numer modelu: PH0850CSET
• Wymiary przedmiotu (dł. x szer. x wys.): 17 x 15 x 8.9 cm (w przybliżeniu)
• Składniki: Plastic base, laminated iron core, 6 coils
• Zamiar: Educational kit for studying electromagnetic induction and transformers.

9. Gwarancja i wsparcie

For information regarding warranty, technical support, or replacement parts, please contact Eisco customer service or refer to the official Eisco website. Please have your model number (PH0850CSET) available when contacting support.
