Nuova Simonelli Aurelia II Volumetric 2 Group Espresso Machine

1. Wprowadzenie

This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your Nuova Simonelli Aurelia II Volumetric 2 Group Espresso Machine. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent damage or injury. Keep this manual in a safe place for future reference.

The Nuova Simonelli Aurelia II Volumetric is a professional-grade espresso machine designed for commercial use, featuring two brewing groups and volumetric dosing for consistent espresso extraction.

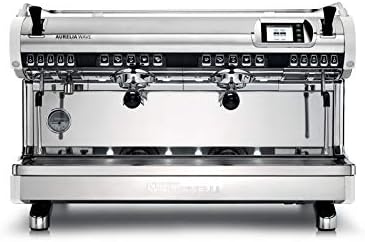

Obraz: Przód view of the Nuova Simonelli Aurelia II Volumetric 2 Group Espresso Machine, showcasing its two group heads, steam wands, and control panel.

2. Instrukcje bezpieczeństwa

Always observe the following safety precautions to reduce the risk of fire, electric shock, personal injury, or damage to the machine.

• Bezpieczeństwo elektryczne: Podłączaj urządzenie wyłącznie do uziemionego gniazdka elektrycznego o odpowiednim napięciu.tage as specified on the machine's rating label. Do not use extension cords or adapters. Disconnect power before cleaning or servicing.
• Podłączenie wody: Ensure the water supply is connected by a qualified technician and meets local plumbing codes. Use a water filter to protect the machine from scale buildup.
• Hot Surfaces and Steam: The machine produces hot water and steam. Exercise extreme caution to avoid burns. Do not touch hot surfaces directly. Use handles and knobs.
• Dzieci i osoby nieupoważnione: Podczas pracy urządzenia należy trzymać dzieci i osoby nieupoważnione z dala od niego.
• Czyszczenie: Always turn off and unplug the machine before cleaning. Allow hot components to cool down. Do not immerse the machine in water.
• Konserwacja: Only qualified service personnel should perform internal maintenance or repairs.

3. Konfiguracja i instalacja

3.1 Rozpakowanie

Ostrożnie wyjmij maszynę z opakowania. Sprawdź, czy nie ma uszkodzeń powstałych podczas transportu. Zachowaj opakowanie do późniejszego transportu, jeśli będzie to konieczne.

3.2 Umieszczenie

Place the espresso machine on a stable, level, and heat-resistant surface capable of supporting its weight. Ensure adequate ventilation around the machine. Maintain clearance from walls and other equipment.

Obraz: Bok view of the Nuova Simonelli Aurelia II espresso machine, showing its sleek design and sturdy base, important for proper placement.

3.3 Podłączenie wody

Connect the machine to a potable cold water supply using the provided flexible hose. It is highly recommended to install a water softener or filter system to prevent limescale buildup, which can severely damage the machine and void the warranty. Ensure all connections are secure and leak-free.

3.4 Podłączenie elektryczne

Plug the machine into a dedicated, grounded electrical outlet that matches the voltagi i amperage requirements specified on the machine's data plate. Do not use power strips or extension cords.

3.5 Initial Startup and Boiler Filling

1. Upewnij się, że zawór dopływu wody jest otwarty.
2. Włącz główny wyłącznik zasilania (zazwyczaj znajduje się z przodu lub z boku urządzenia).
3. The machine will automatically begin to fill the boiler. Monitor the pressure gauge; it should rise steadily.
4. Once the boiler is full, the heating element will activate, and the machine will begin to heat up to operating temperature. This may take 15-30 minutes.
5. Purge steam wands and hot water tap to remove any air from the lines.

4. Instrukcja obsługi

4.1 Panel sterowania ponadview

The Aurelia II Volumetric features a user-friendly control panel with programmable buttons for each group head, a hot water dispenser button, and steam wand controls.

Image: Close-up of the Nuova Simonelli Aurelia II control panel, showing the digital display and programmable volumetric buttons for precise control.

4.2 Parzenie Espresso

1. Mielenie kawy: Zmiel świeże ziarna kawy na odpowiednią grubość do espresso.
2. Dawka i Tamp: Napełnij koszyk filtra odpowiednią ilością zmielonej kawy iamp evenly with firm pressure. Wipe any excess grounds from the rim.
3. Włóż uchwyt filtra: Dokładnie włóż uchwyt filtra do głowicy grupy.
4. Wybierz dawkę: Place your cup(s) under the portafilter spouts. Press the desired volumetric button (e.g., single shot, double shot). The machine will automatically dispense the pre-programmed amount of espresso and stop.
5. Wyjmij uchwyt filtra: Once brewing is complete, remove the portafilter, discard the spent coffee grounds, and rinse the portafilter.

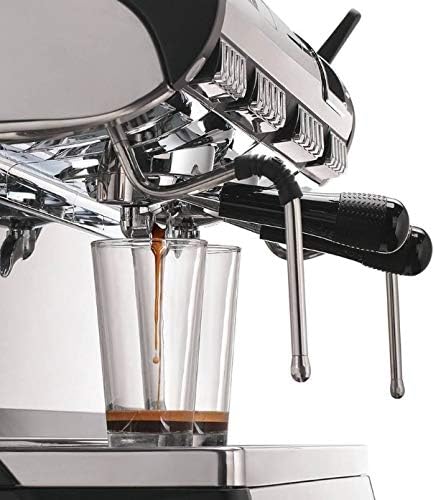

Image: Espresso pouring from the Nuova Simonelli Aurelia II into two clear glasses, demonstrating the brewing process.

4.3 Spienianie mleka

1. Napełnij dzbanek ze stali nierdzewnej zimnym mlekiem, zazwyczaj do poziomu tuż poniżej dzióbka.
2. Purge the steam wand briefly to clear any condensed water.
3. Insert the steam wand tip just below the surface of the milk. Open the steam valve fully.
4. Steam the milk until it reaches the desired temperature and texture.
5. Zamknij zawór pary, wyjmij dzbanek i natychmiast wytrzyj dyszę pary wodą.amp cloth. Purge the wand again to clear any milk residue.

4.4 Dozownik gorącej wody

To dispense hot water, place a cup under the hot water spout and press the dedicated hot water button on the control panel. Press again to stop the flow.

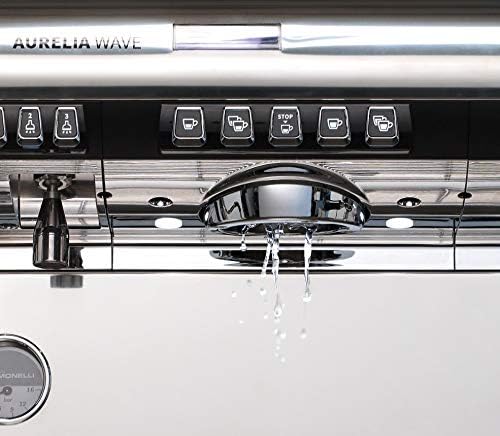

Image: Hot water dispensing from one of the group heads on the Nuova Simonelli Aurelia II, useful for pre-heating cups or making Americanos.

4.5 Programming Volumetric Doses

Refer to the detailed programming guide in the full technical manual for specific instructions on how to adjust the volumetric settings for each brew button. This typically involves entering a programming mode, running a shot to the desired volume, and saving the setting.

5. Konserwacja i czyszczenie

Regularne czyszczenie i konserwacja są kluczowe dla długowieczności i wydajności ekspresu do kawy.

5.1 Codzienne czyszczenie

• Szefowie grup: Backflush each group head with a blind filter and espresso machine cleaner. Follow the cleaner manufacturer's instructions.
• Portafilters and Baskets: Remove and clean portafilters and filter baskets thoroughly with hot water and a brush.
• Steam Wands: Immediately after each use, wipe the steam wands with a damp cloth and purge them. At the end of the day, soak the tips in a solution of steam wand cleaner if necessary.
• Drip Tray and Grids: Empty and clean the drip tray and grids.
• Zewnętrzny: Wytrzyj zewnętrzną część urządzenia miękką szmatką.amp ściereczka. Nie używaj środków czyszczących o właściwościach ściernych.

5.2 Cotygodniowe czyszczenie

• Ścianki prysznicowe i uszczelki: Remove the shower screens and group head gaskets. Clean them thoroughly and inspect for wear. Replace if damaged.
• Perform a more extensive backflush cycle with espresso machine cleaner.

5.3 Wymiana filtra wody

Replace your water filter cartridge according to the manufacturer's recommendations, typically every 3-6 months, depending on water hardness and usage. Failure to do so can lead to scale buildup and machine damage.

6. Rozwiązywanie Problemów

This section addresses common issues you might encounter. For problems not listed here or persistent issues, contact a qualified service technician.

7. Specyfikacje

• Marka: Nuova Simonelli
• Model: Aurelia II Volumetric 2 Group (MAUREIIVOL02ND0001)
• Typ ekspresu do kawy: Ekspres do kawy
• Tryb działania: Semi-Automatic, Volumetric
• Dodatek specjalny: Programowalny
• Tworzywo: Stal nierdzewna
• Kolor: Czarny (zgodnie ze szczegółami produktu)
• Producent: Nuova Simonelli

8. Gwarancja i wsparcie

For warranty information, please refer to the documentation provided at the time of purchase or contact your authorized Nuova Simonelli dealer. For technical support, service, or spare parts, please contact your local distributor or Nuova Simonelli customer service.
