AmScope ME1400T Inverted Trinocular Metallurgical Microscope User Manual

1. Wprowadzenie

This manual provides detailed instructions for the proper setup, operation, and maintenance of your AmScope ME1400T Inverted Trinocular Metallurgical Microscope. This instrument is designed for observing opaque or metallic specimens, or larger specimens that cannot be viewed on a standard microscope stage, utilizing reflected light.

The ME1400T features 40X-400X magnification, WF10x eyepieces with a reticle, Kohler condenser, 30W halogen illumination with rheostat, and a double-layer mechanical stage. Please read this manual thoroughly before using the microscope to ensure safe and optimal performance.

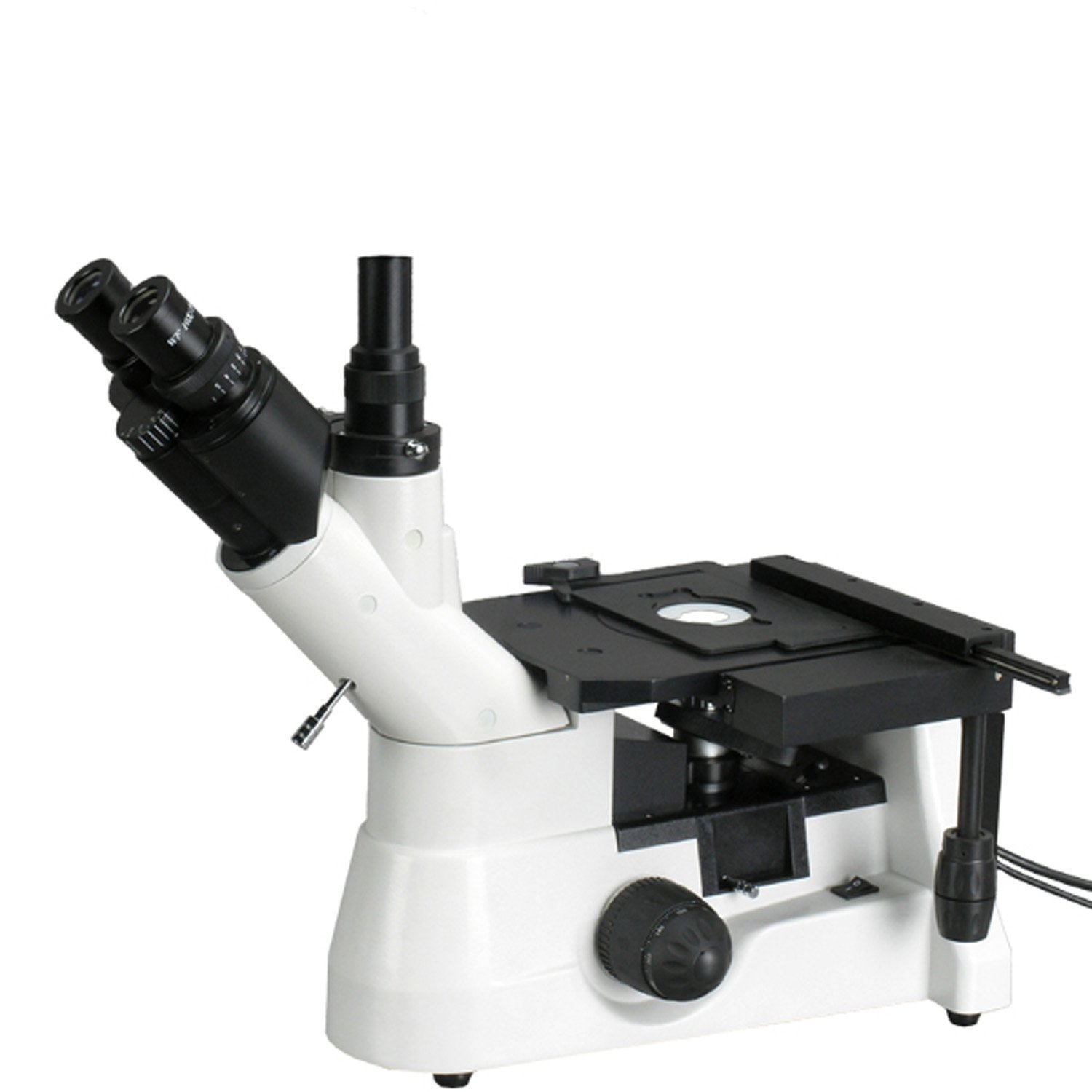

Figure 1: AmScope ME1400T Inverted Trinocular Metallurgical Microscope

2. Informacje dotyczące bezpieczeństwa

• Zawsze obchodź się z mikroskopem ostrożnie. Unikaj gwałtownych ruchów i uderzeń.
• Upewnij się, że mikroskop jest umieszczony na stabilnej i równej powierzchni, aby zapobiec jego przewróceniu.
• Connect the power cord only to a grounded electrical outlet with the correct voltage (85-230 V).
• Do not expose the microscope to direct sunlight, high temperatures, dust, or high humidity.
• Przed czyszczeniem lub jakąkolwiek konserwacją należy odłączyć przewód zasilający.
• Never touch optical surfaces with bare hands. Use a soft, lint-free cloth or lens paper for cleaning.
• Trzymaj małe części i akcesoria poza zasięgiem dzieci.
• If the halogen bulb needs replacement, ensure the microscope is unplugged and the bulb has cooled down to prevent burns.

3. Koniec komponentówview

Familiarize yourself with the main components of your ME1400T microscope:

1. Trinocular Head: Umożliwia jednoczesne viewing through eyepieces and connection of a camera to the vertical port. Features a Siedentopf design for interpupillary distance adjustment and 45-degree inclination for comfortable viewing.
2. Okulary: Includes a pair of 10x20mm high-eyepoint super-widefield eyepieces and one 10x measuring eyepiece with a built-in reticle and micrometer (0.1mm graduations).
3. Nosek: Forward-facing quintuple nosepiece holding the objective lenses.
4. Soczewki obiektywowe: Four DIN metallurgical objectives (4x, 10x, 20x, 40x) providing color correction and improved focus.
5. Mechaniczny Stage: Dwuwarstwowe mechaniczne stage with a removable stage plate and stage stop to protect specimens and objectives.
6. Pokrętła ostrości: Graduated coarse and fine focus knobs with tension control.
7. System oświetlenia: Episcopic reflected and Brightfield illumination with a 30W halogen light source and rheostat for intensity control. Includes a polarizing condenser.

Figure 2: WF10x Eyepieces with Diopter Adjustment

Figure 3: Quintuple Nosepiece with Metallurgical Objectives

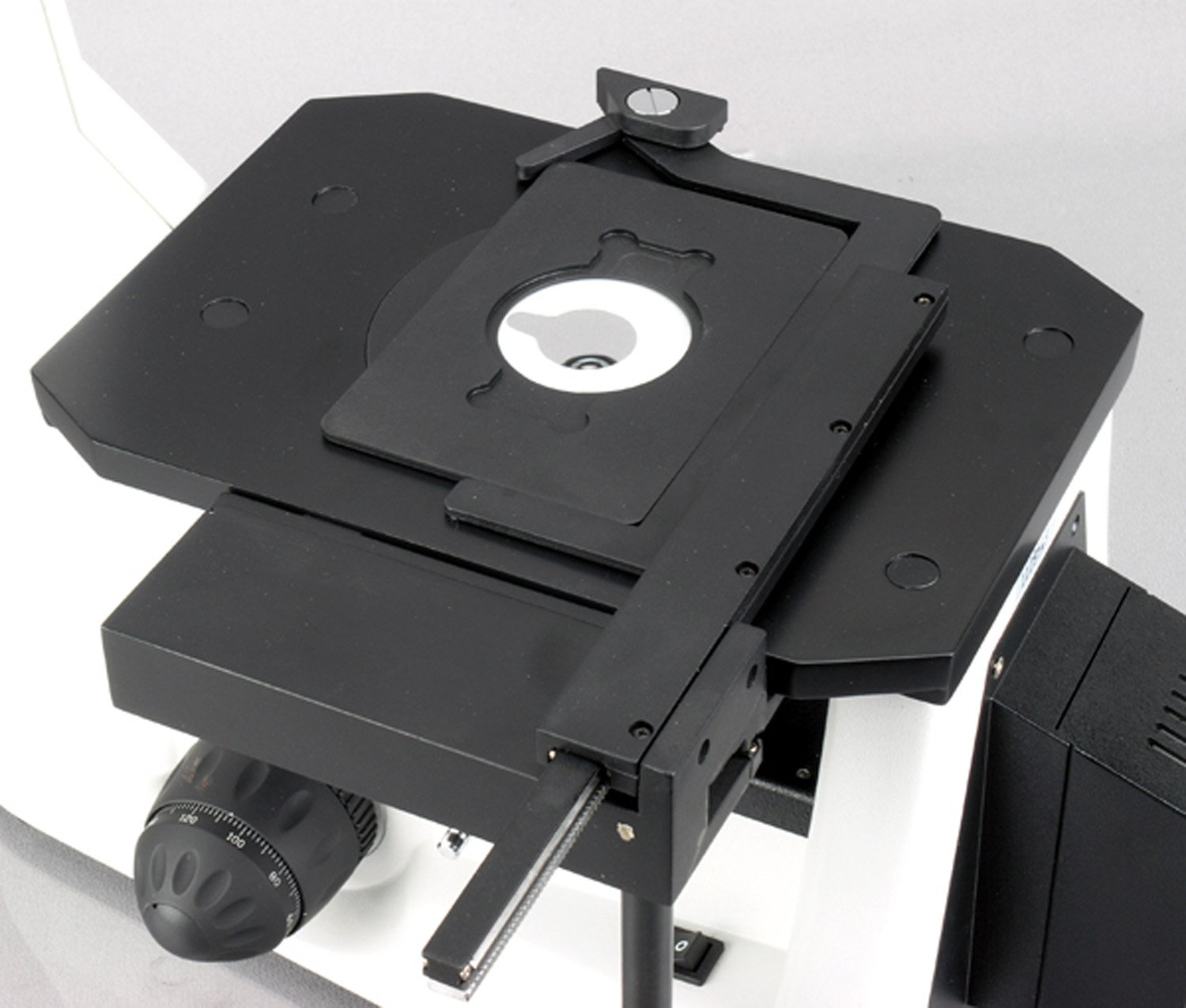

Figure 4: Double-Layer Mechanical Stage

4. Konfiguracja

1. Rozpakowywanie: Ostrożnie wyjmij wszystkie elementy z opakowania. Zachowaj oryginalne opakowanie do transportu lub przechowywania w przyszłości.
2. Umieszczenie: Place the microscope on a sturdy, level, and vibration-free surface. Ensure adequate space around the instrument for operation and ventilation.
3. Attach Trinocular Head: Gently insert the trinocular head into the top port of the microscope body. Secure it by tightening the set screw.
4. Insert Eyepieces: Insert the pair of WF10x20mm eyepieces into the binocular tubes. If using the measuring eyepiece, replace one of the WF10x20mm eyepieces with it.
5. Podłącz zasilanie: Plug the power cord into the microscope's power input, then into a grounded electrical outlet.
6. Początkowe dostosowania:
   • Rozstaw źrenic: While looking through the eyepieces, adjust the distance between the two eyepiece tubes until a single, clear circular field of view jest obserwowany.
   • Regulacja dioptrii: Focus on a specimen using the 10x objective and the right eyepiece only. Then, without touching the coarse or fine focus knobs, adjust the diopter ring on the left eyepiece until the image is sharp through the left eyepiece.

5. Instrukcja obsługi

1. Włączanie: Flip the main power switch to the 'ON' position. The halogen illumination should light up.
2. Dostosuj oświetlenie: Use the rheostat knob to adjust the brightness of the halogen light source to a comfortable level.
3. Umieść próbkę: Place your specimen on the mechanical stage. Użyj stage clips to secure it if necessary.
4. Select Objective: Rotate the nosepiece to select the lowest power objective (e.g., 4x) first. Ensure the objective clicks firmly into place.
5. Skupienie:
   • Using the coarse focus knob, slowly raise the stage until the specimen comes into approximate focus.
   • Use the fine focus knob to achieve a sharp, clear image.
6. Zmiana powiększenia: Rotate the nosepiece to a higher power objective. The microscope is parfocal, meaning only minor adjustments with the fine focus knob should be needed.
7. Using the Measuring Eyepiece: If installed, the measuring eyepiece allows for basic measurements. Calibrate the reticle using a stage micrometer (not included) for accurate measurements at different magnifications.
8. Port trójokularowy: For camera attachment, slide the light path selector (if present) to direct light to the vertical trinocular port. A camera (sold separately) can be mounted here for image capture. The port has a 100% light-splitting rate.
9. Polarizing Illumination: The integrated polarizing condenser can be engaged for observing specimens under polarized light, enhancing contrast for certain materials.
10. Wyłączone: After use, turn the rheostat to the lowest setting, then flip the main power switch to 'OFF'. Unplug the microscope if it will not be used for an extended period.

6. Konserwacja

• Czyszczenie soczewek: Use a soft brush to remove dust, then gently wipe with lens paper moistened with lens cleaning solution. Do not use abrasive cloths or solvents.
• Ogólne sprzątanie: Przetrzyj korpus mikroskopu miękką,amp szmatką. Unikaj dostania się wilgoci do podzespołów elektrycznych.
• Wymiana żarówki halogenowej:
  1. Unplug the microscope and allow the bulb to cool completely.
  2. Locate the bulb housing (refer to your specific model's diagram if available).
  3. Carefully remove the old bulb and insert a new 30W halogen bulb, avoiding touching the glass with bare hands.
  4. Secure the housing and plug in the microscope.
• Składowanie: When not in use, cover the microscope with a dust cover to protect it from dust and debris. Store in a cool, dry place.

7. Rozwiązywanie Problemów

8. Specyfikacje

9. Gwarancja i wsparcie

For warranty information, technical support, or service inquiries regarding your AmScope ME1400T microscope, please contact AmScope customer service directly. Refer to the official AmScope webAby zapoznać się z aktualnymi danymi kontaktowymi i warunkami gwarancji, odwiedź naszą stronę lub dokumentację zakupu.

Zaleca się zarejestrowanie produktu zaraz po zakupie, aby ułatwić sobie korzystanie z pomocy technicznej w przyszłości.
