Neewer 50x70cm Photography Softbox Instruction Manual

1. Koniec produktuview

The Neewer 50x70cm Photography Softbox is designed to diffuse strobe flash, providing soft, even lighting for professional photography. It is an essential accessory for studio setups, enhancing skin tones, minimizing imperfections, and making colors vibrant.

This softbox is compatible with various light sources including flash, fluorescent, quartz, tungsten, and bare lights. It is particularly suitable for fashion photography, portraits, and capturing medium to large-sized products.

Image: The Neewer 50x70cm Photography Softbox in its assembled state, ready for use.

Główne cechy:

• Filters light to avoid harsh shadows and reflections.
• Provides a clean, professional background for photographed subjects.
• Compatible with various light sources (flash, fluorescent, quartz, tungsten, bare lights).
• Features a removable cover for camera lens access when shooting through the softbox.
• Designed for optimal light diffusion, ensuring even illumination.

2. składniki

Before assembly, ensure all components are present and undamaged.

Image: All components included with the Neewer 50x70cm Photography Softbox, laid out for inspection. This includes the softbox fabric, diffuser panels, and support rods.

Pakiet zazwyczaj zawiera:

• Softbox fabric (50 x 70 cm)
• Internal diffuser panel
• External diffuser panel
• Pręty nośne
• Speedring adapter (for mounting to light)
• Carrying bag (not explicitly listed in components but implied by reviews)

Note: Light stand and strobe light are not included with this softbox.

3. Instalacja i montaż

Follow these steps to correctly assemble your Neewer 50x70cm Photography Softbox.

1. Przygotuj Speedring: Lay out the speedring adapter. This is the circular metal or plastic ring with holes for the support rods and a central opening for your light.
2. Wstaw pręty podporowe: Take the softbox fabric and identify the rod pockets. Insert the ends of the support rods into the corresponding holes on the speedring. Gently bend the rods to fit them into the pockets on the opposite corners of the softbox fabric. This will give the softbox its rectangular shape.


   Obraz: Wnętrze view of the softbox, showing the reflective silver lining and the points where the support rods connect to form the structure.

3. Dołącz do światła: Once the softbox is assembled, attach the speedring to your compatible studio strobe or continuous light source. Ensure the light is securely fastened to the speedring.

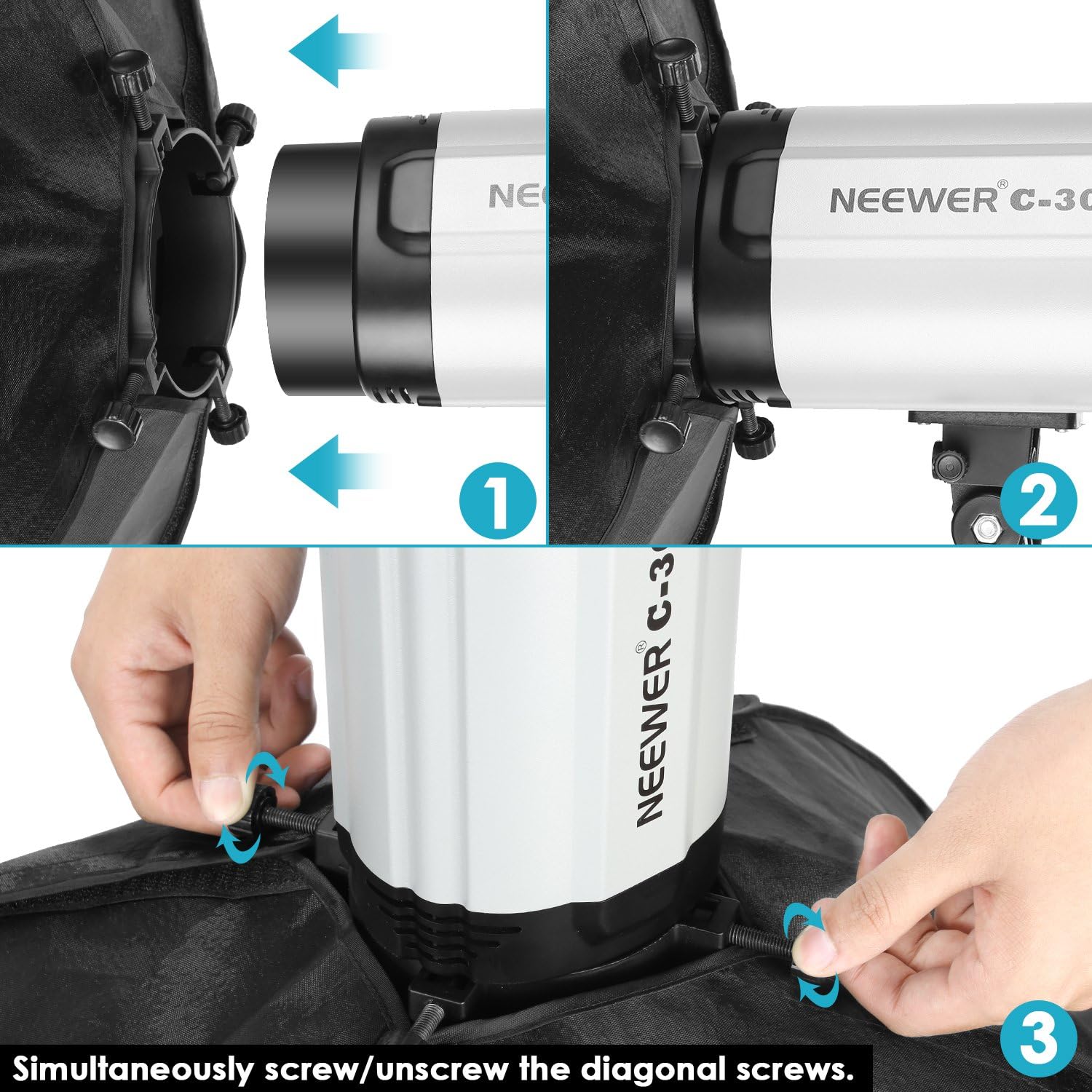

   Image: A visual guide demonstrating how to attach the softbox to a compatible light source by aligning and securing the speedring.
4. Install Diffuser Panels:
   • Internal Diffuser: Attach the smaller, internal diffuser panel inside the softbox using the integrated Velcro tabs. This panel helps to further spread the light evenly.
   • External Diffuser: Attach the larger, external diffuser panel to the front opening of the softbox using the Velcro strips along the edges. This is the primary diffusion layer that softens the light output.


   Image: A comparison showing the softbox interior with its reflective silver lining (left) and with the internal diffuser panel installed (right), illustrating the light-modifying components.

Your softbox is now assembled and ready for use. For disassembly, reverse these steps.

4. Instrukcja obsługi

The Neewer 50x70cm softbox is designed for straightforward operation once assembled. Its primary function is to modify and diffuse light for photography.

Using the Softbox:

• Pozycjonowanie: Place the softbox on a light stand (not included) at the desired angle and height relative to your subject. Experiment with different positions to achieve the desired lighting effect.
• Źródło światła: Ensure your chosen light source (strobe, continuous light, etc.) is securely mounted within the speedring of the softbox.
• Dyfuzja: The internal and external diffuser panels work together to create a soft, even light output. For maximum diffusion, ensure both panels are properly installed.
• Zdejmowana pokrywa przednia: The softbox features a removable front cover. This allows for direct access to the camera lens if you wish to shoot through the softbox for specific effects or to minimize reflections on highly reflective surfaces.

Obraz: strona A view of the assembled Neewer softbox, showcasing its depth and the diffusion panel, illustrating its light-shaping capabilities.

Achieving Optimal Results:

The large surface area of the 50x70cm softbox is ideal for creating soft, flattering light. The closer the softbox is to your subject, the softer the light will appear. Adjust the distance and angle to control the light's intensity and spread.

5. Konserwacja i przechowywanie

Proper care and storage will extend the lifespan of your Neewer softbox.

Czyszczenie:

• Fabric Surfaces: Use a soft, dry cloth to gently wipe down the exterior and interior fabric surfaces.
• Diffuser Panels: If the diffuser panels become dirty, they can be carefully wiped with a slightly damp szmatką. Przed ponownym założeniem lub schowaniem upewnij się, że są całkowicie suche.
• Unikaj silnych środków chemicznych: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the fabric or reflective coating.

Składowanie:

• Demontaż: For long-term storage or transport, disassemble the softbox by reversing the assembly steps. This helps prevent stress on the fabric and rods.
• Składanie: Carefully fold the softbox fabric and diffuser panels.


  Image: The Neewer 50x70cm softbox in its folded or collapsed state, demonstrating its portability and ease of storage.

• Nosić plecak: Store all components in the provided carrying bag to protect them from dust and damage.
• Środowisko: Store the softbox in a cool, dry place, away from direct sunlight and extreme temperatures.

6. Rozwiązywanie Problemów

W tej sekcji omówiono typowe problemy, jakie mogą wystąpić podczas korzystania z softboxa.

7. Specyfikacje

8. Gwarancja i wsparcie

For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official Neewer website. Neewer products typically come with a manufacturer's warranty covering defects in materials and workmanship.

If you encounter any issues not covered in this manual or require further assistance, please contact Neewer customer service through their official channels.

Aby uzyskać więcej informacji, odwiedź stronę Neewer Official Webstrona.
