Ubbink FiltraPure 4000 Pond Filter Instruction Manual

1. Wprowadzenie

Thank you for choosing the Ubbink FiltraPure 4000 Pond Filter. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new pond filter. The FiltraPure 4000 is designed to maintain clear and healthy water in your garden pond through a combination of mechanical and biological filtration, and includes a UV-C unit for algae control. Please read these instructions carefully before use and retain them for future reference.

2. Instrukcje bezpieczeństwa

Aby zmniejszyć ryzyko obrażeń, porażenia prądem lub uszkodzenia produktu, należy zawsze przestrzegać poniższych środków ostrożności.

• Disconnect all electrical appliances from the mains supply before performing any work on the filter or pond.
• Ensure that all electrical connections are waterproof and installed according to local regulations.
• The filter is designed for outdoor use in garden ponds only. Do not use it for any other purpose.
• Do not operate the filter if any part of it, including the power cable or UV-C unit, is damaged.
• Trzymaj dzieci i zwierzęta domowe z dala od stawu i urządzeń elektrycznych.
• Promieniowanie UV-Camp emits harmful radiation. Never look directly at the UV-C lamp kiedy działa.
• Upewnij się, że filtr jest umieszczony na stabilnej i równej powierzchni.

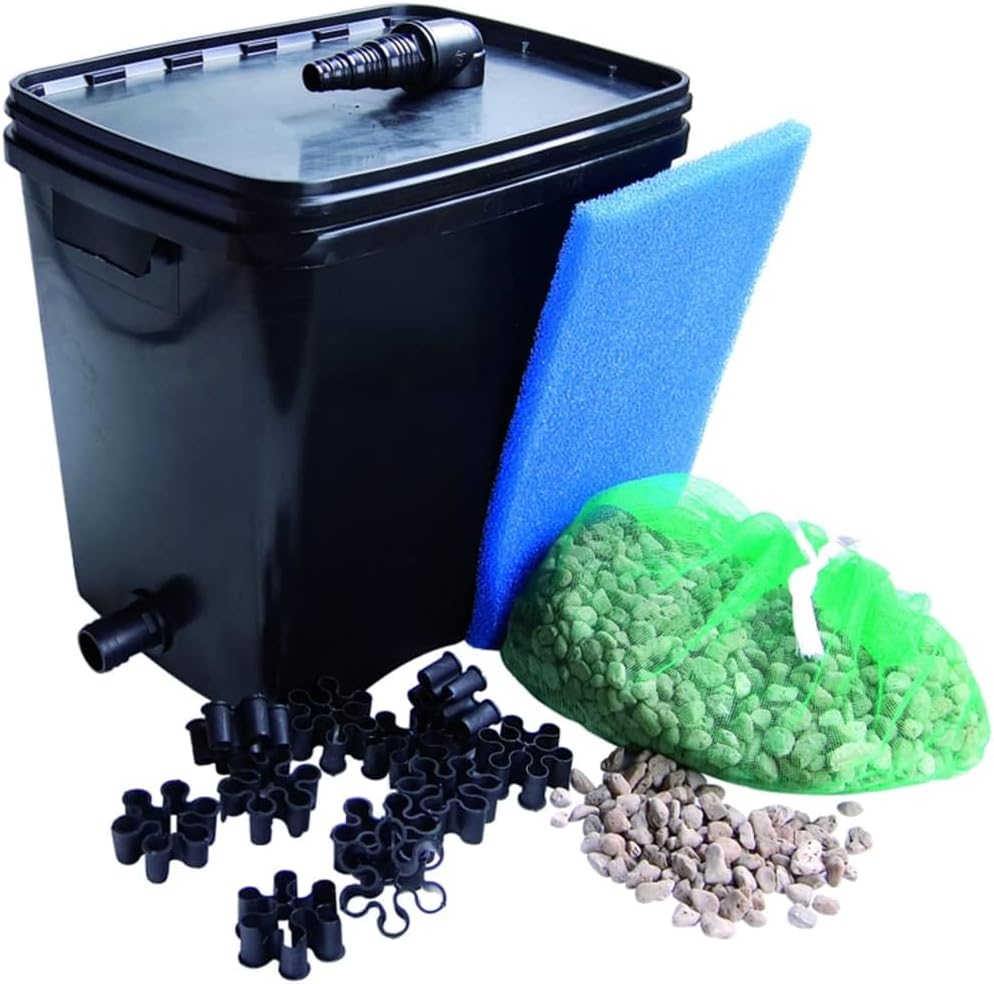

3. Zawartość opakowania

Ostrożnie rozpakuj pudełko i sprawdź, czy wszystkie elementy są obecne i nieuszkodzone.

• FiltraPure 4000 filter housing with lid
• Integrated UV-C unit (if applicable to model variant)
• Filter sponges (mechanical filtration)
• Bio-filter media (biological filtration)
• Hose connections and clamps
• Instrukcja obsługi

Rysunek 3.1: The Ubbink FiltraPure 4000 product box, showing the filter unit and branding.

4. Konfiguracja i instalacja

Proper installation is crucial for the optimal performance of your FiltraPure 4000 filter.

4.1 Umieszczenie filtra

• Place the filter on a stable, level surface next to the pond, preferably in a shaded area to prevent excessive heat buildup.
• The filter outlet should be positioned higher than the pond water level to allow gravity return, or connected to a waterfall/stream.
• Ensure easy access for maintenance.

4.2 Connecting the Pump and Hoses

1. Connect a suitable pond pump (not included) to the inlet of the filter. The inlet is typically located on the lid, often integrated with the UV-C unit.
2. Zabezpiecz połączenia węży za pomocąamps, aby zapobiec wyciekom.
3. Connect a return hose to the filter outlet. This hose will direct the filtered water back into the pond, or to a waterfall/stream.

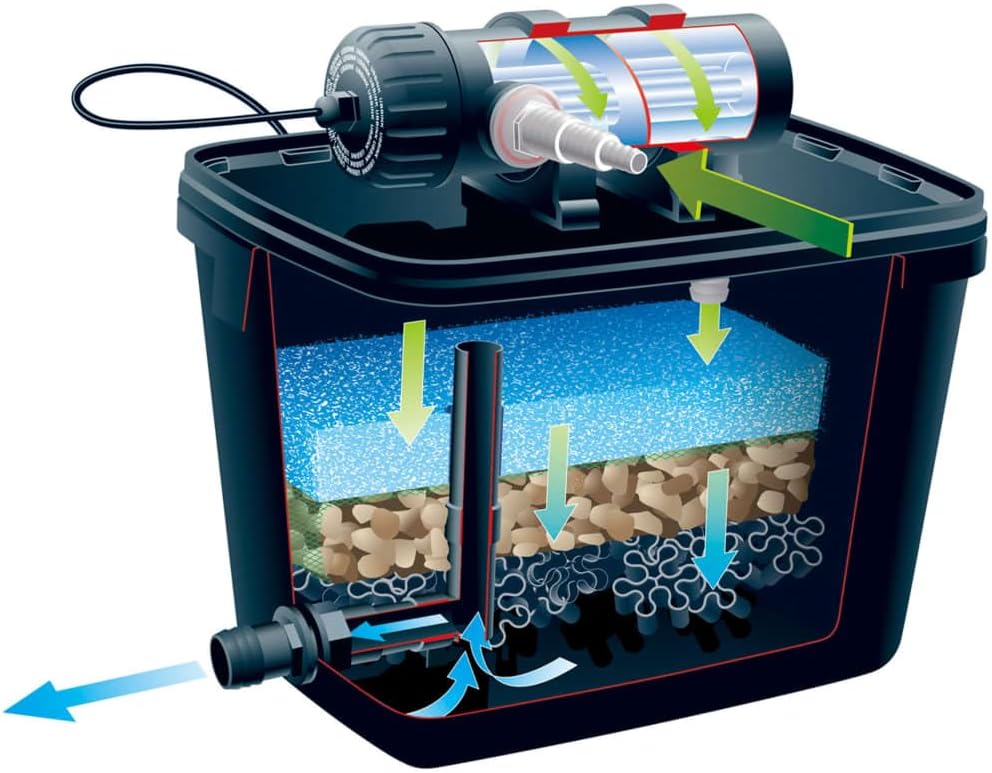

Rysunek 4.1: Diagram illustrating the water flow through the FiltraPure 4000. Water enters through the UV unit, passes through mechanical and biological filter media, and exits back to the pond.

Rysunek 4.2: Wewnętrzny view of the filter, showing the layered arrangement of filter media for effective mechanical and biological filtration.

Rysunek 4.3: A detailed diagram showing the path of water through the filter, highlighting the various stages filtracji.

5. Instrukcja obsługi

Once installed, operating the FiltraPure 4000 is straightforward.

1. Ensure all hose connections are secure and the filter is correctly positioned.
2. Plug in the pond pump and the UV-C unit (if separate power supply).
3. Water will begin to flow from the pond, through the filter, and back into the pond.
4. Allow the filter to run continuously for optimal water quality. It may take several days or weeks for the biological filtration to fully establish and for the pond water to become clear.

6. Konserwacja

Regular maintenance ensures the longevity and efficiency of your filter.

6.1 Czyszczenie wkładów filtracyjnych

• Częstotliwość: Depending on pond load, clean filter sponges every 2-4 weeks. Biological media requires less frequent cleaning.
• Procedura:
  1. Disconnect all power to the pump and UV-C unit.
  2. Zdejmij pokrywę filtra.
  3. Carefully remove the filter sponges. Rinse them in a bucket of pond water (not tap water, as chlorine can kill beneficial bacteria) until most debris is removed.
  4. Do not thoroughly clean the biological media (e.g., bio-balls, ceramic rings) unless absolutely necessary, as this can disrupt the beneficial bacteria colony. If cleaning is required, gently rinse in pond water.
  5. Reassemble the filter, ensuring the lid is securely fastened.
  6. Podłącz ponownie zasilanie.

6.2 UV-C Lamp Wymiana

• Promieniowanie UV-Camp's effectiveness diminishes over time. It should be replaced approximately every 8000 operating hours or annually, typically at the start of the pond season.
• Procedura:
  1. ALWAYS disconnect power before servicing the UV-C unit.
  2. Refer to the specific instructions for your UV-C unit for lamp replacement. This usually involves unscrewing the housing, carefully removing the old lamp, and inserting a new one.
  3. Ensure the quartz sleeve (if present) is clean and free of deposits. Clean with a soft cloth and vinegar solution if necessary.
  4. Złóż urządzenie ponownie i podłącz zasilanie.

7. Rozwiązywanie Problemów

8. Specyfikacje

• Model: Ubbink FiltraPure 4000
• Marka: Ubbink
• Pojemność: 26 Liters (filter volume)
• Metoda oczyszczania: Mechanical, Biological, Ultraviolet (UV-C)
• Tworzywo: Plastikowy
• Wymiary (w przybliżeniu): 40 x 29.5 x 35 cm (długość x szerokość x wysokość)
• Recommended Pond Size: Up to 4000 liters (without fish), smaller with fish.
• Źródło zasilania: Requires external pond pump (not included). UV-C unit requires electrical power.

Rysunek 8.1: Ponadview of various Ubbink pond products and their applications, including different filter types and pumps. This diagram can help in understanding the FiltraPure 4000's place within a complete pond system.

9. Gwarancja i wsparcie

This product comes with a manufacturer's warranty. Please refer to the warranty card included in your original packaging for specific terms and conditions. For technical support, spare parts, or warranty claims, please contact your retailer or the Ubbink customer service department. Keep your proof of purchase for warranty validation.

Ubbink Contact Information: Please visit the official Ubbink webstrona zawierająca najnowsze dane kontaktowe i zasoby pomocy technicznej.
