Hager 27N 5" x 5" ADA Compliant Flush Cup Door Pull

Wstęp

This instruction manual provides detailed guidance for the proper installation, operation, and maintenance of your Hager 27N 5" x 5" ADA Compliant Flush Cup Door Pull. Please read this manual thoroughly before beginning installation to ensure correct procedure and optimal performance.

Produkt ponadview

The Hager 27N is a durable, ADA compliant flush cup door pull designed for high-traffic areas. Constructed from stainless steel, it features interior screw mounting for a clean appearance and enhanced security. This pull meets ANSI A156.6 standards for J403 flush pulls, ensuring reliability and compliance.

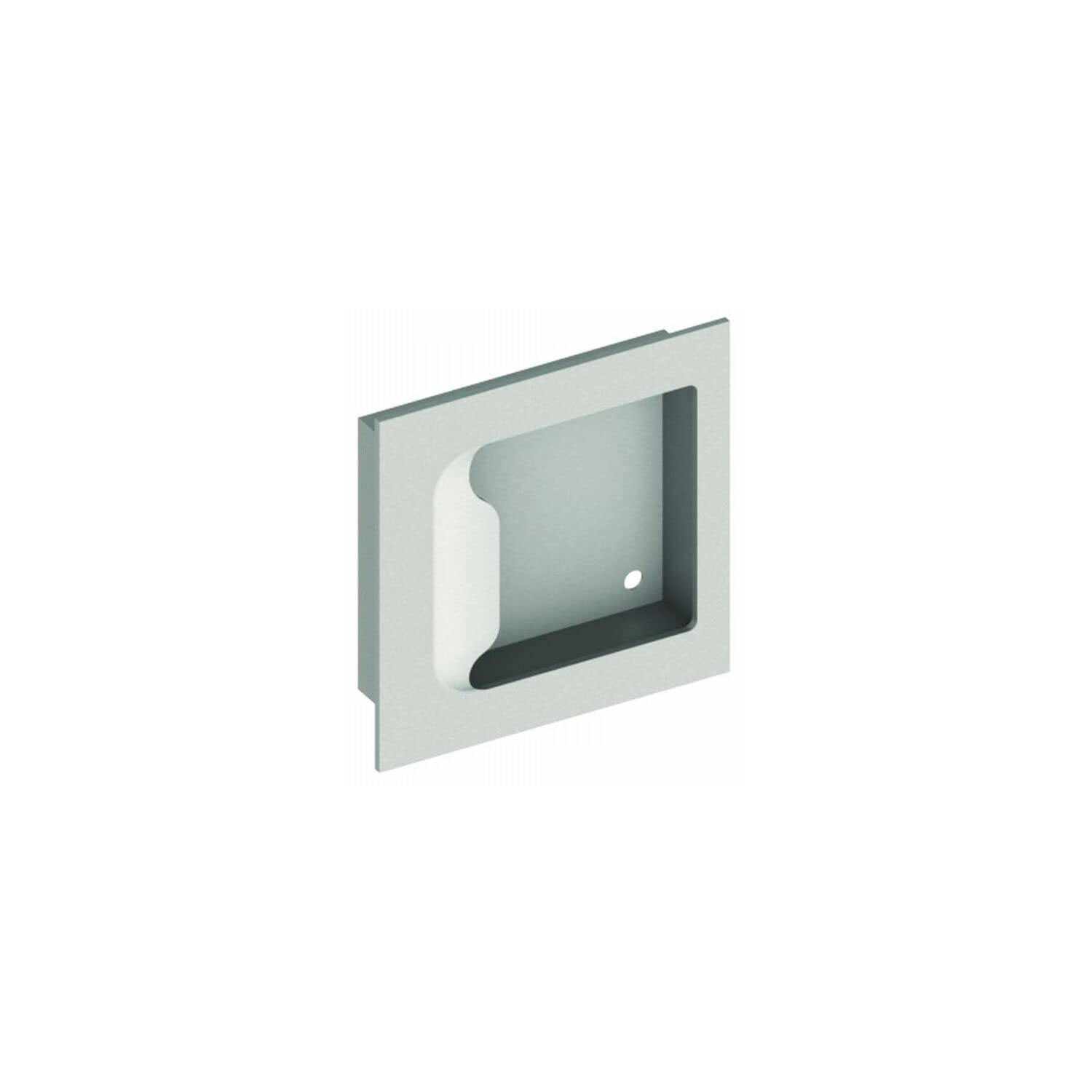

Image showing the Hager 27N 5x5 ADA Compliant Flush Cup Door Pull in a satin stainless finish. The pull features a recessed cup design for flush mounting.

Informacje dotyczące bezpieczeństwa

• Podczas montażu należy zawsze nosić odpowiedni sprzęt ochrony osobistej (PPE), taki jak okulary ochronne i rękawice.
• Ensure all tools are in good working condition before use.
• Trzymaj małe części z dala od dzieci, aby zapobiec ryzyku zadławienia.
• Jeśli masz wątpliwości co do jakiegokolwiek etapu procesu instalacji, skonsultuj się z wykwalifikowanym specjalistą.

Zawartość opakowania

Przed rozpoczęciem instalacji sprawdź, czy wszystkie komponenty są obecne:

• 1x Hager 27N Flush Cup Door Pull
• 4x 10-24 Phillips head metal security Torx screws
• 4x Sex nuts and bolts

Instalacja (konfiguracja)

Ważny: This door pull requires a mortise for flush mounting. It is not suitable for back-to-back mounting applications.

1. Przygotuj drzwi: Create a mortise in the door with the following dimensions: 4-1/2" W x 4" L x 1-1/32" D. Ensure the mortise is clean and free of debris.
2. Position the Pull: Insert the Hager 27N flush cup door pull into the prepared mortise. Ensure it sits flush with the door surface.
3. Secure the Pull: Using the provided 10-24 Phillips head metal security Torx screws, secure the door pull. The screw mounting points are located inside the recessed cup. Use the sex nuts and bolts as appropriate for your door thickness to ensure a secure fit.
4. Operacja testowa: After installation, gently test the door pull to ensure it is securely fastened and operates smoothly.

Działanie

The Hager 27N Flush Cup Door Pull is designed for simple and reliable operation. To open or close the door, grasp the recessed cup and apply gentle force in the desired direction. The flush design minimizes protrusion, providing a sleek and ADA compliant solution.

Konserwacja

To ensure the longevity and appearance of your stainless steel door pull, follow these maintenance guidelines:

• Czyszczenie: Clean the surface regularly with a soft cloth and a mild, non-abrasive cleaner specifically designed for stainless steel. Avoid harsh chemicals or abrasive pads, which can scratch the finish.
• Kontrola: Periodically check the mounting screws for tightness. If any screws are loose, tighten them carefully to prevent the pull from becoming unstable.
• Smarowanie: No lubrication is required for the operation of this door pull.

Rozwiązywanie problemów

• Wydanie: Door pull feels loose or wobbly.
  Rozwiązanie: Check the interior mounting screws. Tighten them securely using the appropriate Torx driver. Ensure the mortise is correctly sized and the pull is fully seated.
• Wydanie: Difficulty grasping the pull.
  Rozwiązanie: Ensure the area around the pull is clear of obstructions. The design is flush, requiring a direct grasp into the cup.

Specyfikacje

Gwarancja i wsparcie

Hager products are manufactured to high standards and are backed by the manufacturer's warranty. For specific warranty details or technical support, please refer to the official Hager Companies webOdwiedź stronę internetową lub skontaktuj się bezpośrednio z działem obsługi klienta. Zachowaj paragon zakupu na wypadek reklamacji.
