Vivitar PZ3115 Date-A-Print AF Auto Focus 35mm Film Camera Instruction Manual

Wstęp

This manual provides detailed instructions for the Vivitar PZ3115 Date-A-Print AF Auto Focus 35mm Film Camera. Please read this manual thoroughly before using your camera to ensure proper operation and to achieve optimal photographic results. Keep this manual for future reference.

The Vivitar PZ3115 is a compact 35mm film camera featuring auto-focus capabilities and a versatile Vivitar Series 1 38-115mm power zoom lens. It also includes a Date-A-Print function to imprint the date onto your photographs.

Komponenty kamery

Familiarize yourself with the various parts of your Vivitar PZ3115 camera.

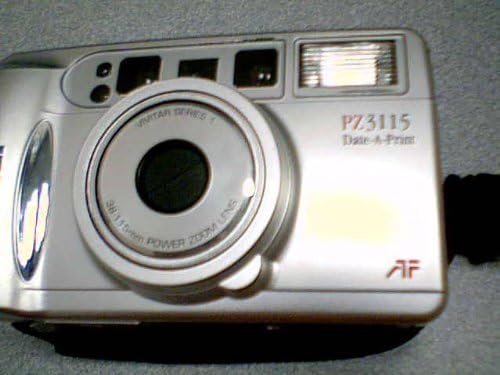

Obraz: Przód view of the Vivitar PZ3115 camera, showing the lens, flash, viewfinder, and Vivitar branding.

Obraz: Tył view of the Vivitar PZ3115 camera, displaying the film counter, mode select, and set buttons for the Date-A-Print function.

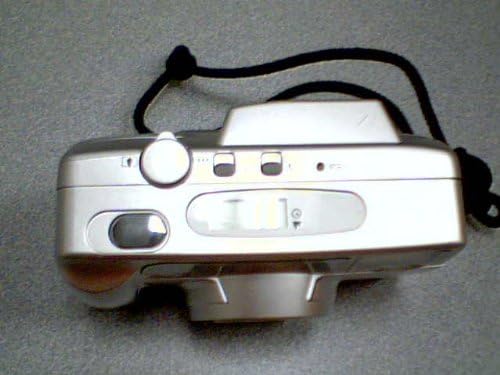

Obraz: Szczyt view of the Vivitar PZ3115 camera, showing the shutter button and film compartment release.

Kluczowe komponenty:

• Obiektyw: Vivitar Series 1 38-115mm Power Zoom Lens.
• Błysk: Built-in automatic flash.
• Viewznalazca: Do komponowania ujęć.
• Spust migawki: Robić zdjęcia.
• Przyciski powiększania: To adjust the focal length of the lens.
• Komora filmowa: For loading 35mm film.
• Komora baterii: For power source.
• Date-A-Print Controls: Buttons for setting and displaying date/time.

Organizować coś

1. Instalacja baterii

The Vivitar PZ3115 requires batteries for operation. (Battery type not specified in product data, typically CR123A or AA for similar models. Refer to the battery compartment cover for specific type.)

1. Znajdź pokrywę komory baterii na spodzie lub z boku aparatu.
2. Open the cover by sliding or lifting it according to the indicator.
3. Insert the new batteries, ensuring correct polarity (+/-) as indicated inside the compartment.
4. Dokładnie zamknij pokrywę komory baterii.

2. Ładowanie filmu

Use standard 35mm film rolls.

1. Open the camera back by sliding the film door latch (usually on the side or top).
2. Umieść nową kasetę z filmem 35 mm w komorze filmu po lewej stronie.
3. Pull the film leader across to the film take-up spool on the right side. Ensure the film perforations engage with the teeth on the take-up spool.
4. Zamknij dokładnie tylną część aparatu, aż do zatrzaśnięcia.
5. Press the shutter button once or twice to advance the film until the film counter displays "1" or the first frame number. The camera will automatically advance the film to the first frame.

3. Setting Date and Time (Date-A-Print)

The Date-A-Print feature allows you to imprint the date or time onto your photos.

1. Locate the Date-A-Print display and control buttons on the camera back (refer to the rear view obraz).
2. Naciśnij TRYB button to cycle through display options (Year/Month/Day, Month/Day/Year, Day/Month/Year, Time, Off).
3. When the desired format is displayed, press the USTAWIĆ button to adjust the blinking digit.
4. Użyj WYBIERAĆ przycisk (lub TRYB again, depending on model) to advance the blinking digit.
5. Repeat until the correct date and time are set.
6. Select "Off" if you do not wish to imprint the date/time.

Obsługa aparatu

1. Włączanie/wyłączanie zasilania

To power on the camera, slide the lens cover open or press the power button (if available). The lens will extend. To power off, close the lens cover or press the power button again.

2. Robienie zdjęć

1. Przejrzyj viewfinder, aby skomponować ujęcie.
2. Use the zoom buttons (usually near the shutter button) to adjust the focal length (38mm wide-angle to 115mm telephoto).
3. Gently press the shutter button halfway down. The auto-focus system will engage, and an indicator light (often green) will confirm focus.
4. Naciśnij spust migawki do końca, aby zrobić zdjęcie. Film automatycznie przejdzie do następnej klatki.

3. Tryby lampy błyskowej

The camera features an automatic flash. In low light conditions, the flash will typically fire automatically. Some models may offer manual flash override or red-eye reduction modes. Consult the camera's specific indicators for flash status.

4. Przewijanie filmu

Once all frames on the film roll have been exposed, the camera will usually rewind the film automatically. If manual rewind is necessary (e.g., to change film mid-roll), locate the rewind button (often a small recessed button on the bottom or side) and press it. The film counter will count down as the film rewinds into the cartridge.

Once rewinding is complete, open the camera back and remove the film cartridge. Take the exposed film to a photo lab for development.

Konserwacja

1. Czyszczenie aparatu

• Do czyszczenia korpusu aparatu należy używać miękkiej, niepozostawiającej włókien ściereczki.
• For the lens, use a specialized lens cleaning cloth and lens cleaning fluid. Gently wipe in a circular motion from the center outwards. Avoid touching the lens with your fingers.
• Zachowaj viewfinder clean for clear composition.
• Nie używaj żrących środków chemicznych ani materiałów ściernych.

2. Wymiana baterii

Replace batteries promptly when the low battery indicator appears or if the camera fails to power on. Always use fresh batteries of the correct type.

3. Film Handling and Storage

• Store film in a cool, dry place, away from direct sunlight and high temperatures.
• Load and unload film in subdued light to prevent accidental exposure.
• Have exposed film developed as soon as possible for best results.

4. Przechowywanie aparatu

When not in use, store the camera in its case or a protective bag, away from dust, moisture, and extreme temperatures. Remove batteries if storing for extended periods to prevent leakage.
