Obserwator nieba HeritagInstrukcja obsługi teleskopu e 76 Mini Dobsona

1. Wprowadzenie

Obserwator nieba Heritage 76 Mini Dobsonian Telescope is a compact and user-friendly astronomical instrument, designed to celebrate the International Year of Astronomy (IYA) and the 400th Anniversary of Galileo’s first telescope. This telescope offers an excellent entry point into the wonders of the night sky, providing clear views of the Moon, planets, and brighter deep-sky objects. Its simple Dobsonian mount makes it easy to set up and operate, ideal for beginners and casual observers.

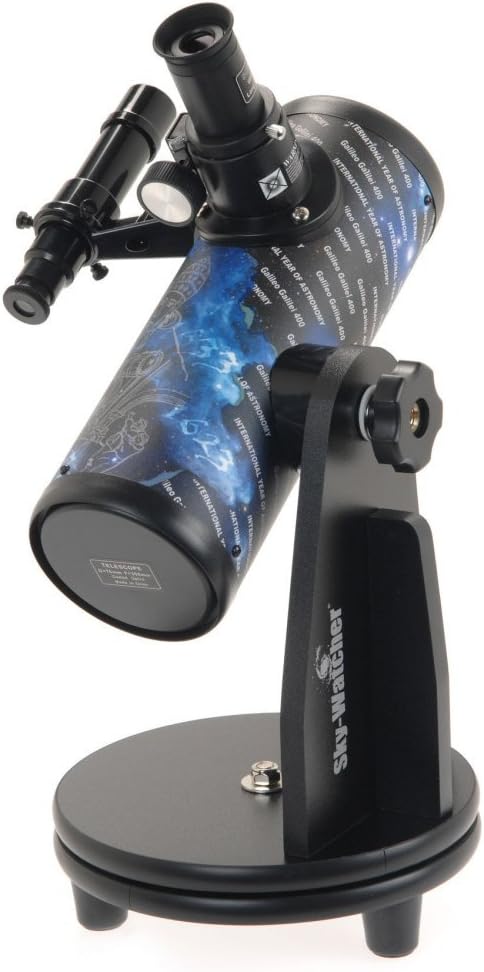

Rysunek 1: Obserwator nieba Heritage 76 Mini Dobsonian Telescope. This image displays the telescope tube with its unique celestial design, mounted on a sturdy black wooden alt-azimuth base. The main eyepiece and the smaller finder scope are clearly visible, indicating the telescope's readiness for observation.

2. Informacje dotyczące bezpieczeństwa

Please read and understand all safety precautions before using your telescope.

• Nigdy nie patrz bezpośrednio na Słońce przez teleskop lub jego szukacz bez profesjonalnie wykonanego filtra słonecznego. Może to spowodować natychmiastowe i nieodwracalne uszkodzenie oczu, łącznie ze ślepotą.
• Nie pozostawiaj teleskopu bez nadzoru, zwłaszcza w obecności dzieci.
• Aby uniknąć zarysowań lub uszkodzeń, należy obchodzić się z elementami optycznymi ostrożnie.
• Ensure the telescope is placed on a stable, level surface to prevent tipping.
• Unikaj wystawiania teleskopu na działanie ekstremalnych temperatur i nagłych zmian temperatury.

3. Zawartość opakowania

Twoja Obserwatorka Niebatage 76 Mini Dobsonian Telescope package should include the following components:

• Obserwator nieba Heritage 76mm Telescope Optical Tube
• Wooden Alt-Azimuth Dobsonian Mount
• Two 1.25" Eyepieces (typically 25mm and 10mm for varying magnifications)
• Optical Finder Scope
• Accessory Tray (if applicable, for some models)
• Instrukcja obsługi (ten dokument)

Notatka: Specific eyepiece focal lengths may vary. Please check your packaging for exact details.

4. Konfiguracja

Setting up your Heritage 76 Mini Dobsonian Telescope is straightforward.

1. Rozpakuj komponenty: Ostrożnie wyjmij wszystkie elementy z opakowania.
2. Place the Mount: Position the wooden alt-azimuth mount on a stable, level surface, such as a table or sturdy stand.
3. Zamontuj tubę optyczną: The telescope optical tube is typically pre-attached to the Dobsonian mount. If not, align the tube with the mount's cradle and secure it using the provided knobs or screws. Ensure it is firmly seated but do not overtighten.
4. Install Eyepiece: Insert the lower power eyepiece (e.g., 25mm) into the focuser. Secure it by tightening the thumbscrew on the focuser.
5. Attach Finder Scope: Slide the optical finder scope into its bracket on the telescope tube. Secure it with the small thumbscrews. You will need to align the finder scope with the main telescope later.

5. Obsługa teleskopu

5.1. Wyrównanie szukacza

The finder scope helps you locate objects in the night sky. It needs to be aligned with the main telescope.

1. During daylight hours, point the main telescope at a distant, stationary object (e.g., a treetop or a street light) at least a quarter-mile away.
2. Ustaw obiekt w centralnym okularze teleskopu.
3. Look through the finder scope. Use the adjustment screws on the finder scope bracket to move its crosshairs until the same object is centered in the finder scope's view.
4. Check the alignment by moving the telescope slightly and re-centering the object in the main eyepiece, then verifying it's still centered in the finder scope.

5.2. Obserwacja

To begin observing:

1. Wybierz okular: Start with the lowest power eyepiece (the one with the largest focal length, e.g., 25mm) for the widest field of view and easiest object location. Once an object is found, you can switch to a higher power eyepiece (e.g., 10mm) for more magnification.
2. Zlokalizuj obiekt: Use the finder scope to aim the telescope at your desired celestial object. Once the object is in the finder scope's crosshairs, it should be visible in the main telescope's eyepiece.
3. Centrum: Turn the focuser knob slowly until the image in the eyepiece is sharp and clear.
4. Śledzenie: W miarę obrotu Ziemi ciała niebieskie będą się oddalać view. Gently nudge the telescope in the direction of the object's drift to keep it centered in the eyepiece. The Dobsonian mount allows for smooth manual tracking.

6. Konserwacja

Właściwa pielęgnacja zapewni długowieczność i wydajność teleskopu.

• Czyszczenie optyki: Dust on the mirror or lenses can reduce image quality. Use a soft brush or compressed air to remove loose dust. For stubborn smudges, use a specialized optical cleaning solution and a microfiber cloth designed for optics. Apply solution to the cloth, not directly to the lens/mirror.
• Składowanie: When not in use, store the telescope in a clean, dry, dust-free environment. Keep the dust caps on the optical tube and eyepieces.
• Unikaj wilgoci: Do not expose the telescope to rain or high humidity. If dew forms on the optics, allow it to evaporate naturally in a dry environment before capping the telescope.
• Obsługiwanie: Always handle the telescope by its mount or tube, avoiding direct contact with optical surfaces.

7. Rozwiązywanie Problemów

8. Specyfikacje

9. Gwarancja i wsparcie

For information regarding warranty coverage, terms, and conditions, please refer to the documentation provided with your purchase or contact your retailer. Sky-Watcher products typically come with a manufacturer's warranty against defects in materials and workmanship.

For technical support, troubleshooting assistance beyond this manual, or spare parts, please contact Sky-Watcher customer service or your authorized dealer. Contact details can usually be found on the official Sky-Watcher webna stronie internetowej lub w miejscu zakupu.
