RIDGID 50985 1-2-inch Grooving Die Set Instruction Manual

1. Koniec produktuview

The RIDGID 50985 1-2-inch Grooving Die Set is designed for grooving pipe for mechanical type couplings. This die set is intended for use with Universal Die Heads and is manufactured in the United States. It is suitable for 1-inch to 2-inch pipe sizes.

Główne cechy obejmują:

• Designed for 1-inch to 2-inch pipe sizes.
• Used for grooving pipe to accommodate mechanical type couplings.
• Compatible with Universal Die Heads.

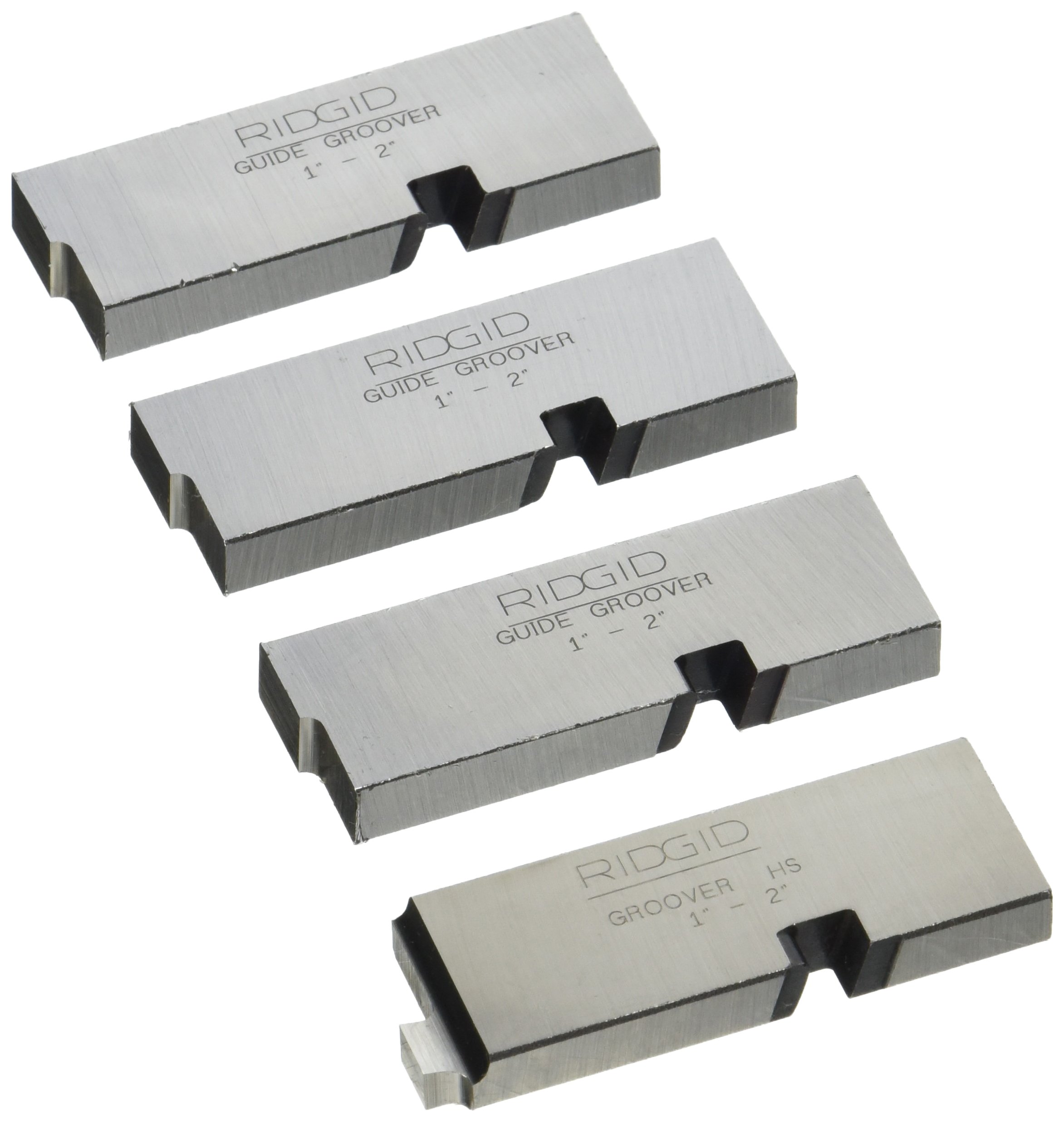

Figure 1: The RIDGID 50985 1-2-inch Grooving Die Set components.

2. Informacje dotyczące bezpieczeństwa

Always observe the following safety precautions when using the RIDGID 50985 Grooving Die Set to prevent injury and damage to the tool or workpiece.

• Przeczytaj wszystkie instrukcje: Before operating, read and understand all instructions provided with the die set and the universal die head.
• Noś odpowiedni sprzęt ochrony osobistej (PPE): Always wear safety glasses, gloves, and other necessary protective gear.
• Zapewnij stabilną konfigurację: Securely mount the universal die head and the pipe before beginning any grooving operation.
• Sprawdź narzędzia: Before each use, inspect the die set and die head for any damage or wear. Do not use damaged equipment.
• Utrzymuj miejsce pracy w czystości: Utrzymuj czyste i dobrze oświetlone miejsce pracy. Bałagan lub ciemność sprzyjają wypadkom.
• Avoid forcing the tool: Allow the tool to work at its intended speed and capacity. Forcing it can lead to injury or damage.

3. Zawartość opakowania

The RIDGID 50985 1-2-inch Grooving Die Set package typically includes:

• RIDGID 50985 Grooving Die Set (1 set)

Note: Universal Die Head and other accessories are sold separately.

4. Konfiguracja

To set up the RIDGID 50985 Grooving Die Set for operation, follow these steps:

1. Prepare the Universal Die Head: Ensure your universal die head is clean and in good working condition. Refer to the die head's instruction manual for specific preparation steps.
2. Install the Die Set: Carefully insert the 50985 Grooving Die Set into the designated slots of the universal die head. Ensure it is seated correctly and securely fastened according to the die head's instructions.
3. Select Pipe Size: Verify that the die set is appropriate for the 1-inch to 2-inch pipe you intend to groove. Consult the die head's chart for specific size compatibility and settings.
4. Zabezpiecz rurę: Mount the pipe securely in the universal die head's chuck or clamping mechanism, ensuring it is properly aligned and stable.

5. Instrukcja obsługi

Once the die set and pipe are properly installed in the universal die head, proceed with the grooving operation:

1. Smarowanie: Apply appropriate cutting oil to the pipe area where the groove will be formed. Proper lubrication is crucial for smooth operation and extending die life.
2. Engage the Die: Slowly bring the grooving die into contact with the pipe.
3. Begin Grooving: Activate the universal die head (if powered) or manually rotate the pipe while applying steady pressure with the die set. Follow the specific operating procedures outlined in your universal die head's manual.
4. Monitoruj postęp: Continuously monitor the grooving process. Ensure the groove is forming evenly and to the correct depth. Refer to the chart provided with your mechanical couplings for precise groove dimensions.
5. Complete the Groove: Continue until the desired groove depth and profile are achieved. Avoid over-grooving.
6. Retract and Inspect: Retract the die set from the pipe. Carefully remove the pipe and inspect the newly formed groove for accuracy and quality.

6. Konserwacja

Proper maintenance ensures the longevity and optimal performance of your RIDGID 50985 Grooving Die Set.

• Czyszczenie: After each use, clean the die set thoroughly to remove any metal shavings, debris, and excess cutting oil. Use a brush and appropriate cleaning solution if necessary.
• Smarowanie: Lightly oil the die set components after cleaning to prevent rust and corrosion, especially if storing for extended periods.
• Kontrola: Regularly inspect the die set for signs of wear, damage, or dullness. Worn dies can produce poor quality grooves and should be replaced.
• Składowanie: Store the die set in a dry, clean environment, preferably in its original packaging or a protective case, to prevent damage and contamination.

7. Rozwiązywanie Problemów

If you encounter issues while using the RIDGID 50985 Grooving Die Set, consider the following common troubleshooting steps:

• Poor Groove Quality:
  • Ensure the die set is clean and free of debris.
  • Verify that the die set is correctly installed and secured in the universal die head.
  • Check if the die is worn or dull; replace if necessary.
  • Confirm adequate lubrication is being used during the grooving process.
  • Ensure the pipe is securely clamped and not moving during operation.
• Difficulty Grooving:
  • Verify the pipe material and thickness are within the die set's specified capacity.
  • Ensure sufficient cutting oil is applied.
  • Check for proper alignment of the die set with the pipe.
• Excessive Tool Wear:
  • Ensure proper lubrication is consistently applied.
  • Unikaj nadmiernej siły podczas pracy.
  • Verify the pipe material is compatible with the die set.

If problems persist, consult the universal die head's manual or contact RIDGID customer support.

8. Specyfikacje

9. Informacje o gwarancji

RIDGID offers a Full Lifetime Warranty for the 50985 Grooving Die Set. Should your tool ever malfunction due to defects in workmanship or materials, RIDGID will repair or replace the tool free of charge.

For detailed warranty terms and conditions, please refer to the official RIDGID warranty documentation or contact RIDGID customer support.

10. Wsparcie

For technical assistance, replacement parts, or further information regarding the RIDGID 50985 1-2-inch Grooving Die Set, please contact RIDGID customer support through their official webna miejscu lub w autoryzowanych punktach serwisowych.

Always provide the model number (50985) when seeking support to ensure accurate assistance.
