Hosa CPE-106 Right Angle to Right Angle Guitar Patch Cable
Model: CPE106
Brand: Hosa
Wstęp
The Hosa CPE-106 is a high-quality patch cable specifically engineered to interconnect electric guitar pedal effects. Its right-angle plugs are designed to facilitate close spacing of pedal effects on pedalboards, optimizing space and setup efficiency. This cable features serviceable, all-metal plugs for durability in live-sound applications, an Oxygen-Free Copper (OFC) conductor for enhanced signal clarity, and an OFC spiral shield for effective EMI and RFI rejection, ensuring a clean and reliable audio signal.
Rysunek 1: Koniecview of the Hosa CPE-106 Right Angle Guitar Patch Cable, showcasing its compact design and right-angle connectors.
Konfiguracja i połączenie
Connecting the Hosa CPE-106 cable is straightforward. This cable is designed for short-distance connections between audio equipment, primarily guitar effects pedals.
- Identify Inputs/Outputs: Locate the 1/4-inch (TS) input and output jacks on your effects pedals.
- Connect First Pedal: Insert one right-angle plug of the CPE-106 cable into the output jack of your first effects pedal.
- Connect Second Pedal: Insert the other right-angle plug into the input jack of the next effects pedal in your signal chain.
- Bezpieczne połączenie: Ensure both plugs are fully inserted and seated firmly in their respective jacks. The right-angle design allows for pedals to be placed closely together on a pedalboard, maximizing space.

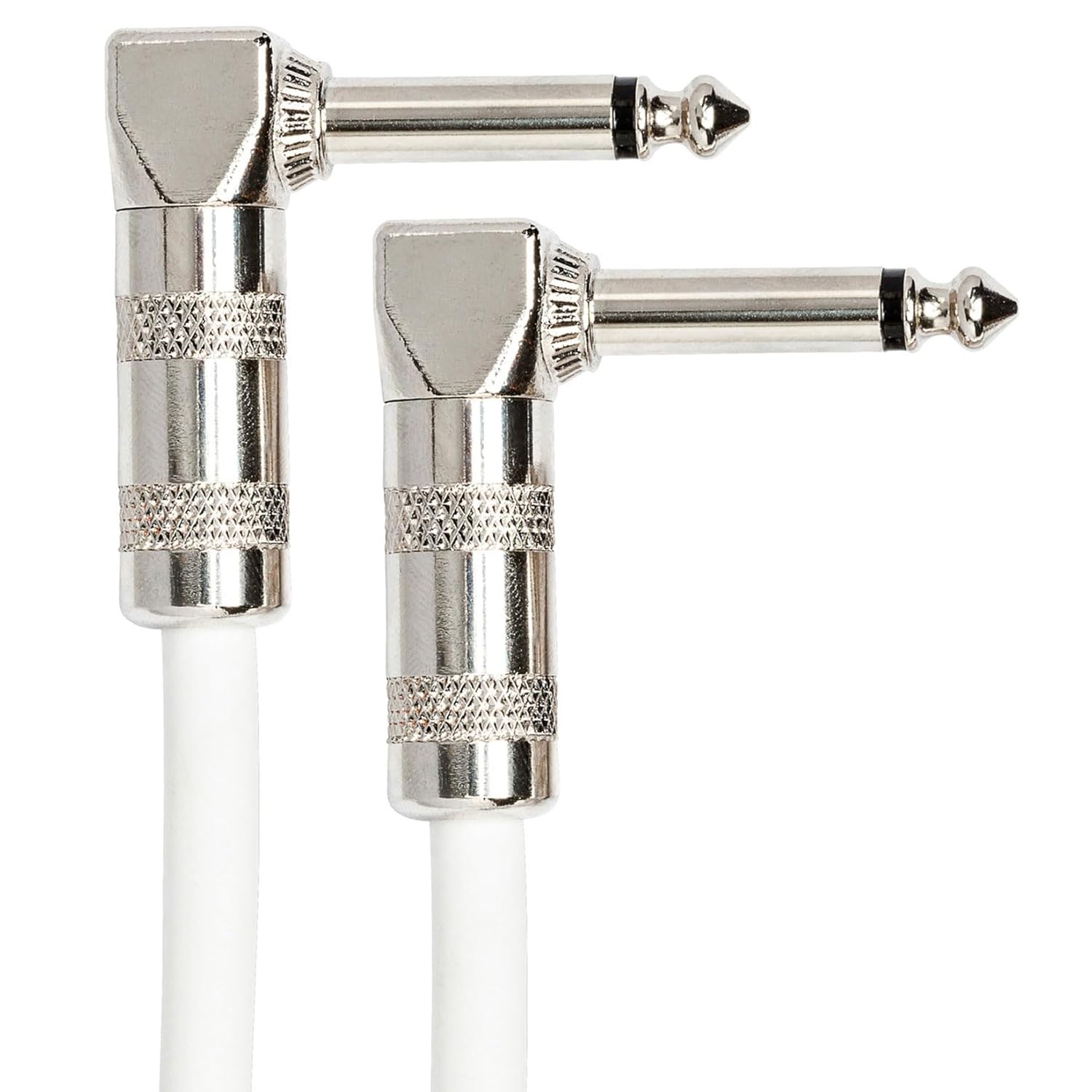

Rysunek 2: Zbliżenie view of the right-angle connectors, illustrating their design for efficient pedalboard layout.
Wytyczne operacyjne
The Hosa CPE-106 cable operates passively, transmitting audio signals between connected devices. No specific operational steps are required beyond proper connection.
- Czystość sygnału: The Oxygen-Free Copper (OFC) conductor is designed to maintain the integrity of your audio signal, minimizing loss and preserving clarity.
- Odrzucanie szumów: The OFC spiral shield provides effective rejection of electromagnetic interference (EMI) and radio frequency interference (RFI), contributing to a cleaner sound free from unwanted noise.
- Elastyczność: The cable's design offers flexibility, allowing for easy routing on pedalboards while maintaining durability.
Figure 3: The cable featuring the Hosa brand logo, indicating its authenticity and quality.
Konserwacja
Proper maintenance extends the life and performance of your Hosa CPE-106 cable.
- Czyszczenie: Wipe the cable and connectors with a soft, dry cloth to remove dust and grime. Avoid using harsh chemicals or abrasive materials.
- Składowanie: When not in use, coil the cable loosely. Avoid tight coiling or sharp bends, which can damage the internal conductors and shielding. Store in a cool, dry place away from direct sunlight and extreme temperatures.
- Obsługiwanie: Always grasp the connector housing when plugging or unplugging the cable, rather than pulling on the cable itself. This prevents strain on the solder joints and internal wiring.
- Serwisowalność: The all-metal plugs are designed to be serviceable. In the event of a connection issue, the plugs can be unscrewed to inspect or repair the internal wiring, if you possess the necessary technical skills.
Rozwiązywanie problemów
If you experience issues with your Hosa CPE-106 cable, consider the following common troubleshooting steps:
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Brak dźwięku / Przerywany sygnał | Loose connection; Damaged cable/connector; Incorrect routing. | Ensure plugs are fully inserted. Test with another known-good cable. Check the signal chain for other faulty components. |
| Humming / Buzzing Noise | Ground loop; Interference; Damaged shielding. | Ensure all equipment is properly grounded. Check for nearby sources of electromagnetic interference. Test with another cable. |
| Słaba jakość dźwięku | Damaged conductor; Corroded connectors. | Inspect connectors for corrosion; clean if necessary. Test with another cable to isolate the issue. |
If issues persist after troubleshooting, consider contacting Hosa customer support or a qualified technician.
Specyfikacje
Detailed technical specifications for the Hosa CPE-106 Right Angle to Right Angle Guitar Patch Cable:
| Funkcja | Szczegół |
|---|---|
| Numer modelu | CPE106 |
| Długość | 6 cali (15.24 cm) |
| Dyrygent | 24 AWG Oxygen-Free Copper (OFC) |
| Typ złącza | 1/4-inch TS Right-angle to Right-angle |
| Tarcza | 90% OFC Spiral |
| Wymiary produktu | 10 x 1 x 1 cala (przybliżone wymiary opakowania) |
| Waga przedmiotu | 0.69 uncji (w przybliżeniu) |
| Kompatybilne urządzenia | Guitar effects pedals, audio equipment with 1/4-inch TS jacks |
Gwarancja i wsparcie
Hosa products are manufactured to high standards and are designed for reliable performance. For specific warranty information regarding your Hosa CPE-106 cable, please refer to the warranty documentation included with your purchase or visit the official Hosa webstrona.
For technical support, product inquiries, or assistance with troubleshooting beyond the scope of this manual, please contact Hosa customer service through their official weblub autoryzowanych dystrybutorów. Zachowaj paragon jako dowód zakupu na wypadek roszczeń gwarancyjnych.
