Plumb Pak PP20925 End Outlet Continuous Waste Installation Manual

1. Koniec produktuview

The Plumb Pak PP20925 is a 16-inch end outlet continuous waste assembly designed for plumbing applications. It features a durable white plastic construction and offers versatile connection options, including slip joint or direct connect. This unit is equipped with a baffle tee, facilitating efficient drainage for double-bowl sinks or similar setups.

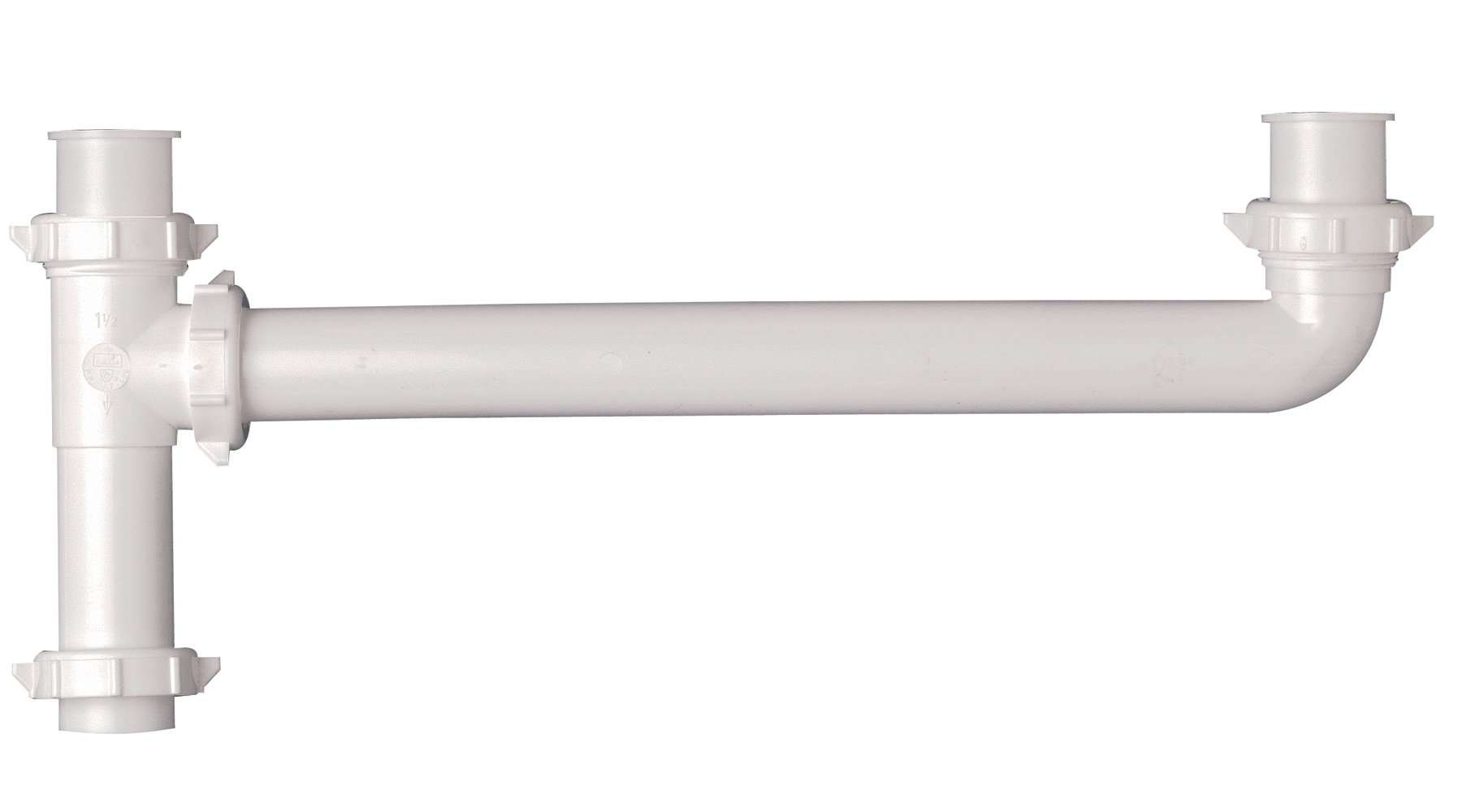

Image 1.1: The Plumb Pak PP20925 End Outlet Continuous Waste assembly, showing its white plastic construction and configuration.

Główne cechy:

• Trwała konstrukcja z tworzywa sztucznego: Ensures longevity and resistance to corrosion.
• Białe wykończenie: Provides a clean, standard appearance.
• Slip Joint or Direct Connect: Offers flexibility for various plumbing configurations.
• C to E with Baffle Tee: Designed for continuous waste applications, typically for two sink bowls draining into one trap.
• Kompletny zestaw: Includes all necessary nuts and washers for installation.

2. Zawarte komponenty

The Plumb Pak PP20925 package contains the following components:

• 16-inch End Outlet Continuous Waste Pipe
• Baffle Tee
• All necessary nuts and washers for assembly and connection

The primary material is plastic, and the color is white.

3. Informacje dotyczące bezpieczeństwa

Please read and understand all instructions before beginning installation. Failure to follow these instructions may result in property damage or personal injury.

• Always turn off the water supply to the sink before starting any plumbing work.
• Nosić odpowiedni sprzęt ochrony osobistej, taki jak okulary i rękawice ochronne.
• Ensure all connections are tight to prevent leaks, but do not overtighten plastic nuts, as this can cause cracking.
• Jeśli masz jakiekolwiek wątpliwości, skonsultuj się z wykwalifikowanym hydraulikiem.

4. Instrukcje instalacji

This section provides general guidelines for installing the Plumb Pak PP20925 continuous waste. Specific configurations may vary.

Narzędzia, których możesz potrzebować:

• Adjustable wrench or slip-joint pliers
• Bucket or pan (to catch residual water)
• Szmatka lub ręcznik
• Hacksaw or PVC cutter (if pipe trimming is required)

Kroki instalacji:

1. Przygotuj obszar: Turn off the water supply to the sink. Place a bucket or pan under the existing drain assembly to catch any water. Remove the old drain assembly if present.
2. Connect Tailpieces to Sink Drains: Attach the tailpieces from your sink drains (not included with this product) to the sink basket strainers. Ensure a good seal with plumbers putty or a gasket.
3. Assemble the Baffle Tee: Connect the baffle tee to one of the sink tailpieces. The baffle tee is designed to direct water flow from both sink bowls into the trap. Ensure the slip nuts and washers are correctly positioned and tightened by hand, then snug with pliers.
4. Attach Continuous Waste Pipe: Connect the 16-inch continuous waste pipe from the other sink tailpiece to the baffle tee. This pipe runs horizontally between the two sink drains. Adjust the length if necessary by cutting the pipe with a hacksaw or PVC cutter, ensuring clean, straight cuts.
5. Podłącz do syfonu: Attach the outlet of the baffle tee to your existing P-trap assembly. If installing a new P-trap, ensure it is correctly aligned with the wall or floor drain.
6. Dokręć wszystkie połączenia: Hand-tighten all slip nuts first, then use an adjustable wrench or pliers to snug them an additional quarter to half turn. Be careful not to overtighten, especially with plastic components.
7. Test szczelności: Turn on the water supply and fill both sink bowls. Remove the stoppers and observe all connections for any signs of leaks. If leaks occur, tighten the affected connection slightly.

5. Działanie

The Plumb Pak PP20925 continuous waste system operates passively by directing wastewater from two sink bowls into a single P-trap. Once installed correctly, water will flow from the sink drains through the tailpieces, into the continuous waste pipe and baffle tee, and then down into the P-trap and main drain line.

Ensure that sink stoppers are functioning correctly to prevent accidental overflow. Avoid pouring harsh chemicals down the drain, as they can damage plastic plumbing components over time.

6. Konserwacja

Regular maintenance helps ensure the longevity and proper function of your continuous waste assembly.

• Kontrola szczelności: Periodically inspect all connections for any signs of leaks, especially after heavy use or if you notice water under the sink.
• Czyszczenie: If clogs occur, disassemble the slip joint connections to clean out any debris. Avoid using chemical drain cleaners that can corrode or damage plastic pipes. A plumbing snake or a mixture of baking soda and vinegar followed by hot water can be effective for minor clogs.
• Środki zapobiegawcze: Use sink strainers to catch food particles and other debris before they enter the drain system.

7. Rozwiązywanie Problemów

8. Specyfikacje

9. Understanding Tubular Systems

For a better understanding of tubular plumbing components and how to select the right parts for your needs, please refer to the following informational video provided by Keeney Holdings LLC.

10. Informacje o gwarancji

For specific warranty details regarding the Plumb Pak PP20925, please refer to the packaging or contact Keeney Manufacturing directly. General plumbing product warranties typically cover defects in materials and workmanship for a limited period from the date of purchase.

11. Obsługa klienta

If you have questions about the installation, operation, or maintenance of your Plumb Pak PP20925, please contact Keeney Manufacturing customer support. Contact information can typically be found on the product packaging or their official webstrona.

Producent: Keeney Manufacturing
