HON Brigade Series HSC1872.L.P Five-Shelf Storage Cabinet Instruction Manual
Model: HSC1872.L.P
1. Wprowadzenie
This manual provides essential information for the safe and efficient use of your HON Brigade Series HSC1872.L.P Five-Shelf Storage Cabinet. This cabinet is designed for secure storage in various environments. Please read this manual thoroughly before installation and operation to ensure proper handling and longevity of your product.
2. Informacje dotyczące bezpieczeństwa
Observe the following safety guidelines to prevent injury and damage to the cabinet:
- Upewnij się, że szafka jest umieszczona na równej i stabilnej powierzchni, aby zapobiec jej przewróceniu.
- Nie przeciążaj półek. Rozłóż ciężar równomiernie.
- Keep cabinet doors closed and locked when not in use, especially in areas with children.
- Avoid climbing on or leaning against the cabinet.
- Use caution when adjusting shelves to prevent pinching or dropping.
3. Zawartość opakowania
Your HON Brigade Series HSC1872.L.P Storage Cabinet is factory-assembled and typically includes:
- One (1) HON Brigade Series HSC1872.L.P Storage Cabinet
- Two (2) Keys for the locking mechanism
- Five (5) Adjustable Shelves (pre-installed or requiring minor placement)
4. Konfiguracja
The HON Brigade Series HSC1872.L.P Storage Cabinet arrives fully assembled, requiring minimal setup. Follow these steps for proper placement and initial use:
- Rozpakowywanie: Carefully remove all packaging materials. Inspect the cabinet for any shipping damage. Report any damage to your retailer immediately.
- Umieszczenie: Choose a suitable location for the cabinet. Ensure the floor is level and capable of supporting the cabinet's weight, especially when fully loaded. Allow adequate space for door opening.
- Niwelacja: If the cabinet is not stable, adjust the leveling glides (if present) at the bottom corners until the cabinet is level and does not wobble.
Rycina 4.1: Przód view of the HON Brigade Series HSC1872.L.P Storage Cabinet with doors closed.

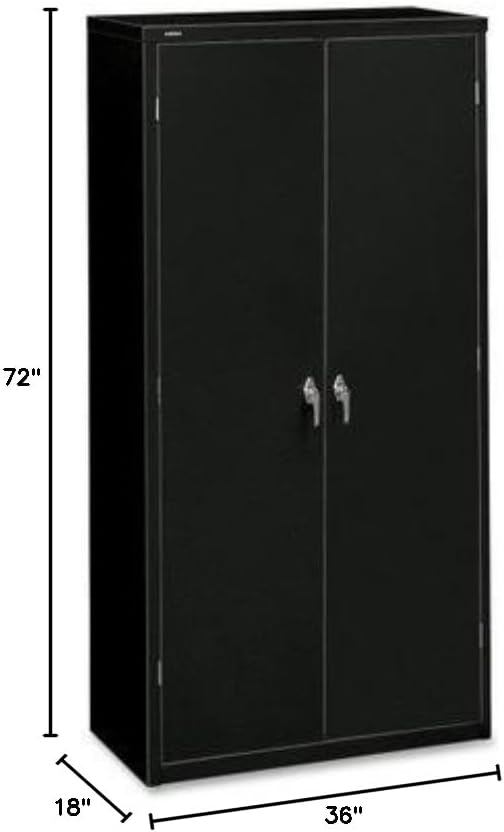

Rysunek 4.2: Wymiarowy view of the storage cabinet, showing 72 inches height, 36 inches width, and 18 inches depth.
5. Instrukcja obsługi
5.1 Regulacja półek
The cabinet features five adjustable shelves that can be repositioned in 2-inch increments to accommodate various storage needs.
- Opróżnij półkę: Usuń z półki wszystkie przedmioty, które chcesz dostosować.
- Usuń półkę: Carefully lift the shelf slightly and pull it forward to disengage it from the shelf clips or supports on the side rails.
- Zmiana położenia klipsów: Move the shelf clips or supports to the desired height. Ensure all four clips are at the same level to keep the shelf stable.
- Włóż półkę: Place the shelf back onto the repositioned clips, ensuring it is securely seated and level.
Rysunek 5.1: Wnętrze view of the cabinet with doors open, illustrating adjustable shelves and potential storage configurations.
5.2 Mechanizm blokujący
The cabinet is equipped with a standard lock for security. Use the provided keys to lock and unlock the doors.
- Zablokować: Close both doors completely. Insert the key into the lock cylinder and turn it clockwise until the mechanism engages. Remove the key.
- Aby odblokować: Insert the key into the lock cylinder and turn it counter-clockwise until the mechanism disengages. The doors can then be opened.
6. Konserwacja
Regular maintenance ensures the longevity and appearance of your storage cabinet.
- Czyszczenie: Wipe exterior and interior surfaces with a soft, damp cloth and mild detergent. Avoid abrasive cleaners or solvents that could damage the finish. Dry thoroughly.
- Zawiasy i zamek: Periodically check door hinges and the locking mechanism for smooth operation. Apply a small amount of silicone-based lubricant if necessary.
- Kontrola: Regularly inspect the cabinet for any loose fasteners, dents, or structural damage. Address any issues promptly.
7. Rozwiązywanie Problemów
Aby zapoznać się z najczęstszymi problemami i ich rozwiązaniami, zapoznaj się z poniższą tabelą.
| Problem | Możliwa przyczyna | Rozwiązanie |
|---|---|---|
| Drzwi nie zamykają się prawidłowo | Cabinet is not level; hinges are misaligned; obstruction inside. | Adjust leveling glides; check hinge screws and tighten if loose; remove any obstructions. |
| Shelves are difficult to adjust | Shelf clips are stuck or misaligned; shelf is overloaded. | Ensure shelf is empty; gently wiggle clips to free them; ensure clips are properly seated in holes. |
| Mechanizm zamka jest sztywny | Lack of lubrication; debris in lock. | Apply a small amount of graphite lubricant to the keyhole; ensure key is fully inserted. |
8. Specyfikacje
| Funkcja | Szczegół |
|---|---|
| Numer modelu | HSC1872.L.P |
| Marka | Sędzia |
| Wymiary (gł. x szer. x wys.) | 18" x 36" x 72" |
| Liczba półek | 5 (regulowany) |
| Shelf Adjustment Increments | 2 cali |
| Kolor | Czarny |
| Tworzywo | Alloy Steel (Frame, Back), Steel (Top) |
| Materiał uchwytu | Chrom |
| Typ zamka | Zamek kluczowy |
| Wymagany montaż | Nie (w pełni zmontowany) |
| Waga przedmiotu | 131 funtów |
| Kraj pochodzenia | Stany Zjednoczone |
Figure 8.1: Isometric line drawing illustrating the cabinet's structure.
Figure 8.2: Indication of product manufacturing in the USA.
9. Informacje o gwarancji
For specific warranty details regarding your HON Brigade Series HSC1872.L.P Storage Cabinet, please refer to the warranty documentation provided at the time of purchase or visit the official HON webWarunki gwarancji zazwyczaj obejmują wady produkcyjne powstałe w wyniku normalnego użytkowania.
10. Obsługa klienta
If you require further assistance, have questions not covered in this manual, or need to report an issue, please contact your retailer or visit the official HON webwitryna zawierająca zasoby pomocy technicznej dla klientów.
